Niglon 1000 x 600 x 300mm ip66 mild steel enclosure

Description

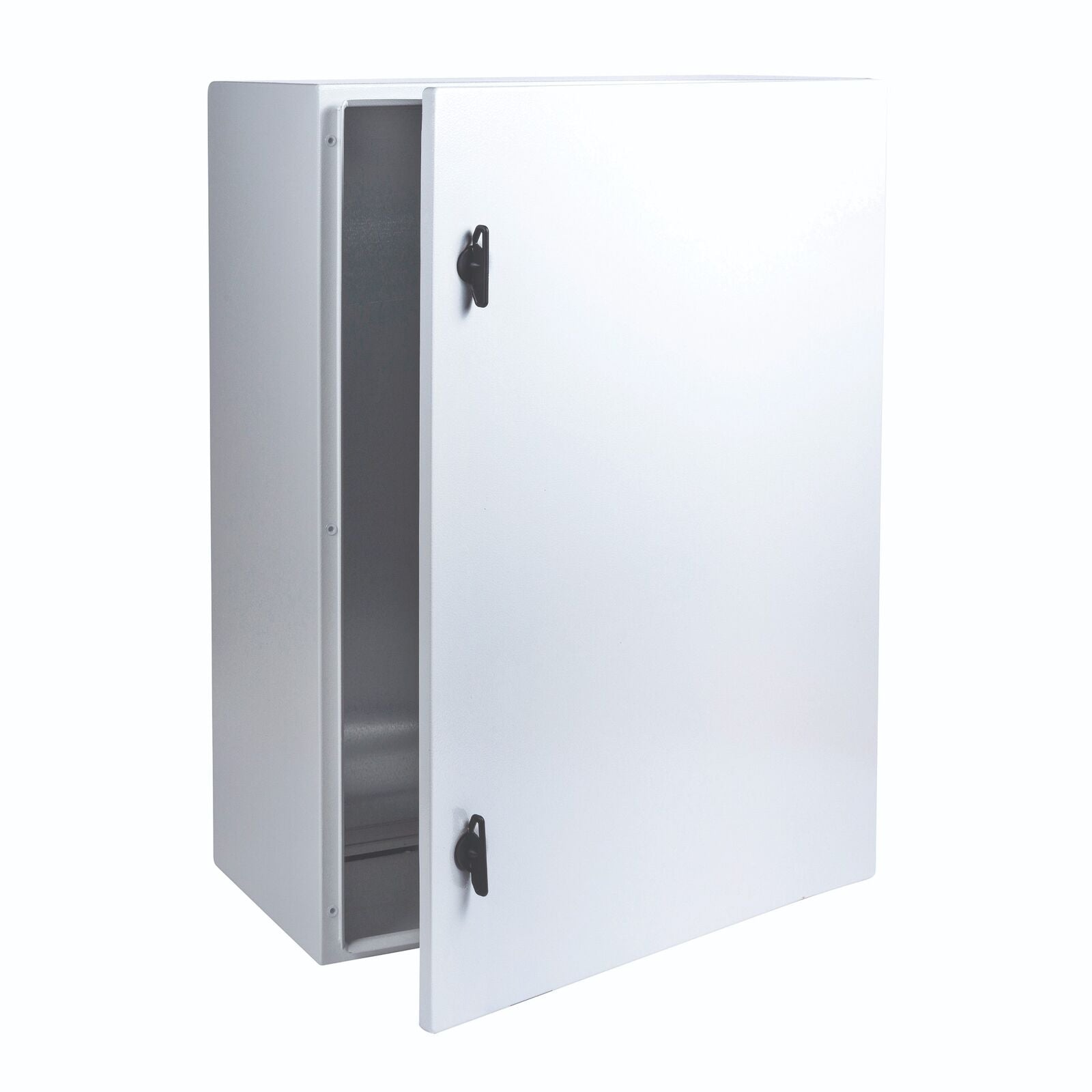

Niglon 1000 x 600 x 300mm IP66 Mild Steel Enclosure - MS1006030

Part No               Description

MS1006030         1000 x 600 x 300mm IP66 Mild Steel Enclosure

Characteristics

Wall mounting mild steel enclosure painted with epoxy polyester powder paint. Standard RAL7035 colour. The polyurethane gasket keeps its profile over time to give a high degree of protection against water and dust. Door opens 125° and is reversible. One gland plate can be top or bottom. Welded earth studs top and bottom. Fitted, galvanised back plate has return edges for extra rigidity.

Specifications

Standards: BSEN 61439-1, BSEN 60529, BSEN 62208 & BSEN 62262
Ingress Protection: IP66

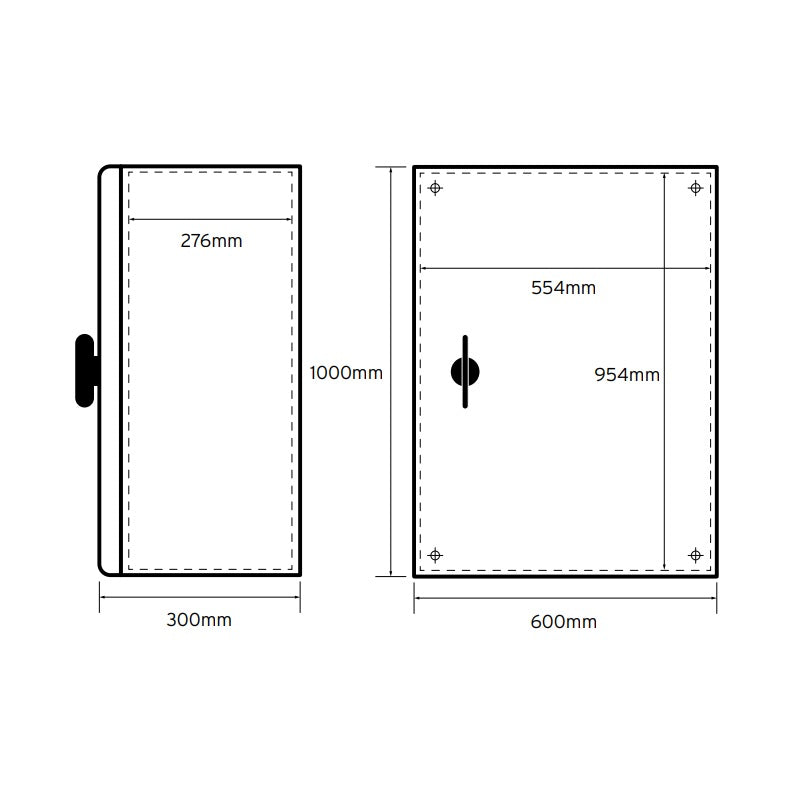

Height: 1000mm
Width: 600mm
Depth: 300mm
Enclosure Steel Thickness: 1.2mm
Backplate height: 954mm
Backplate width: 554mm
Useable depth with backplate fitted: 276mm
Backplate Thickness: 2mm
Gland plate dimensions: 416 x 120mm
Number of Locks: 2
Number of Gland Plates: 2
Operating Temperature: -25°C to +55°C
Operating Relative Humidity at +20°C: 90%
Operating Relative Humidity at +40°C: 50%
Weight: 36.7Kg

Available Accessories

Document Pocket: A4DOCW
Spare T Bit Key: STBK
Mild Steel Key Lock: MSKL
Spare Key: SPAK
Mild steel Padlockable Lock: DBPL
Wall Mount Brackets (pack of 4): SSWB
220mm Earth strap: ES22
