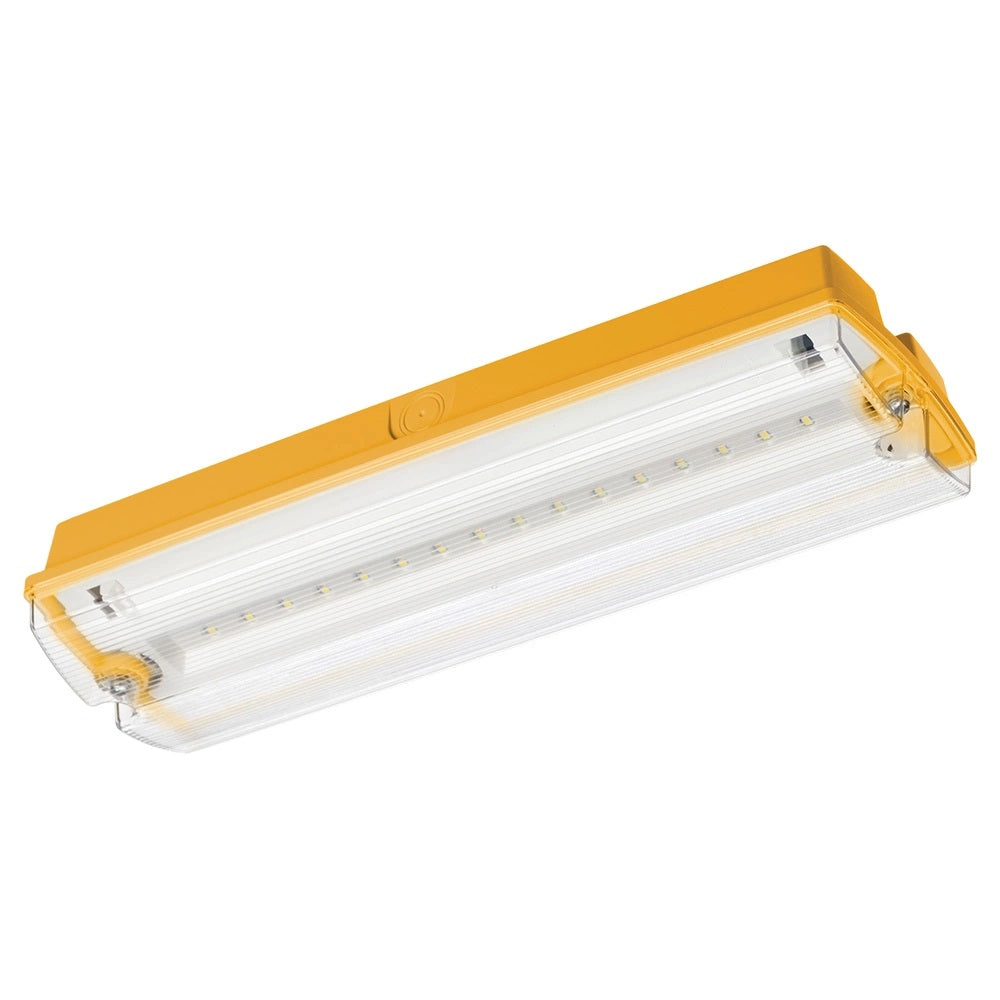

Red arrow vanguard site 110v 3w ip66 maintained/nonmaintained emergency bulkhead - vans/3y

Part No           Description

VANS/3Y          Vanguard Site 110V 3W IP66 Maintained/Nonmaintained Emergency Bulkhead

Vanguard Site delivers safe site illumination in the event of a power failure. Featuring a sleek, shallow profile and carefully designed lens for improved spacings, Vanguard Site also has configurable maintained or non-maintained operation and features a hinged gear tray for easy and rapid installation..

Features

• Shallow profile design
• Hinged gear tray for quick and easy installation
• Selectable maintained or non-maintained operation
• 3 hours emergency duration

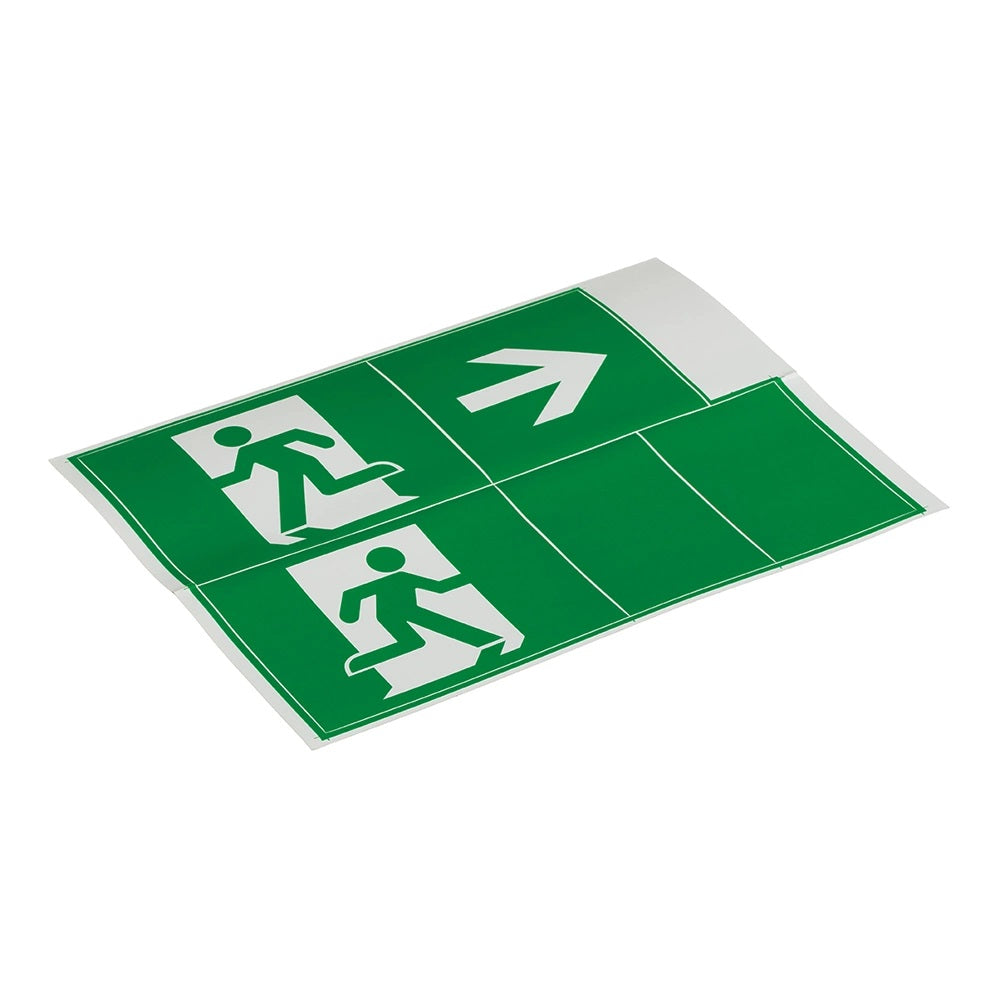

• Supplied with self adhesive exit legend kit

Specification

Material Body: ABS
Material Diffuser: Polycarbonate
Wattage: 3W
Lumen Output: 150 lm
Colour Temperature: 6500K
Colour Finish: Yellow (RAL1007)
CRI Ra>80
LED Lifetime: L70B50 54,000 hrs
IP Rating: IP66
IK Rating: IK08
Working Temperature: -0C to 45°C
Emergency Battery Type@ LiFePO4
Electrical Class: Class: II
Approval: UKCA &CE
Guarantee: 5 Years

Dimensions

L: 351 x W: 111 x D: 63 mm

VANS-3Y Data Sheet
