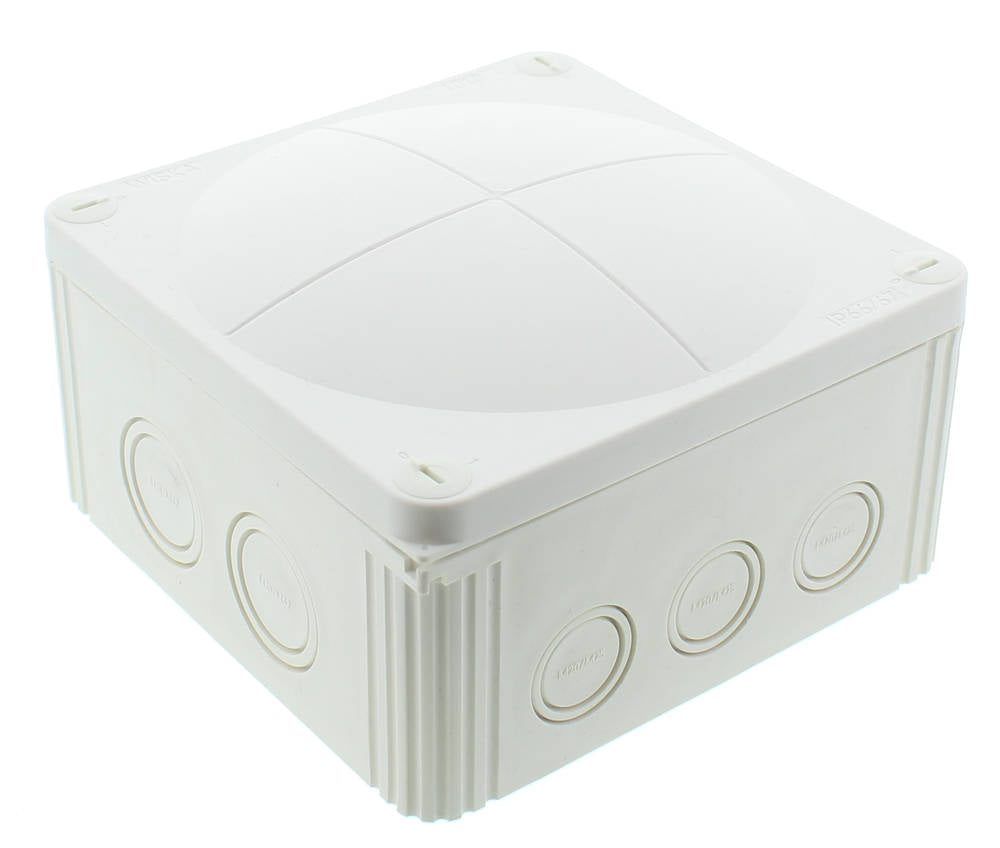

Wiska combi 1010/5 wh polypropylene 140 x 140 x 82mm enclosure white (with 5 pole terminal)

Description

Wiska Combi 1010/5 WH Polypropylene 140 x 140 x 82mm Enclosure White (with 5 Pole Terminal) - 10062211

Part No            Description

10062211          Combi 1010/5 WH Polypropylene 140 x 140 x 82mm Enclosure White (with 5 Pole Terminal)

IP66: using the QUIXX self sealing membrane screw
IP67: using the knockout entry together with ESKV cable gland

Equipment:

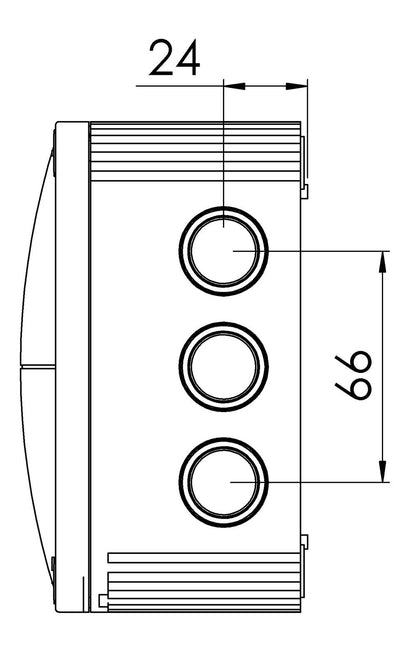

10 knockouts side 5x M25/M32; 2x M20; 3x M20/M25

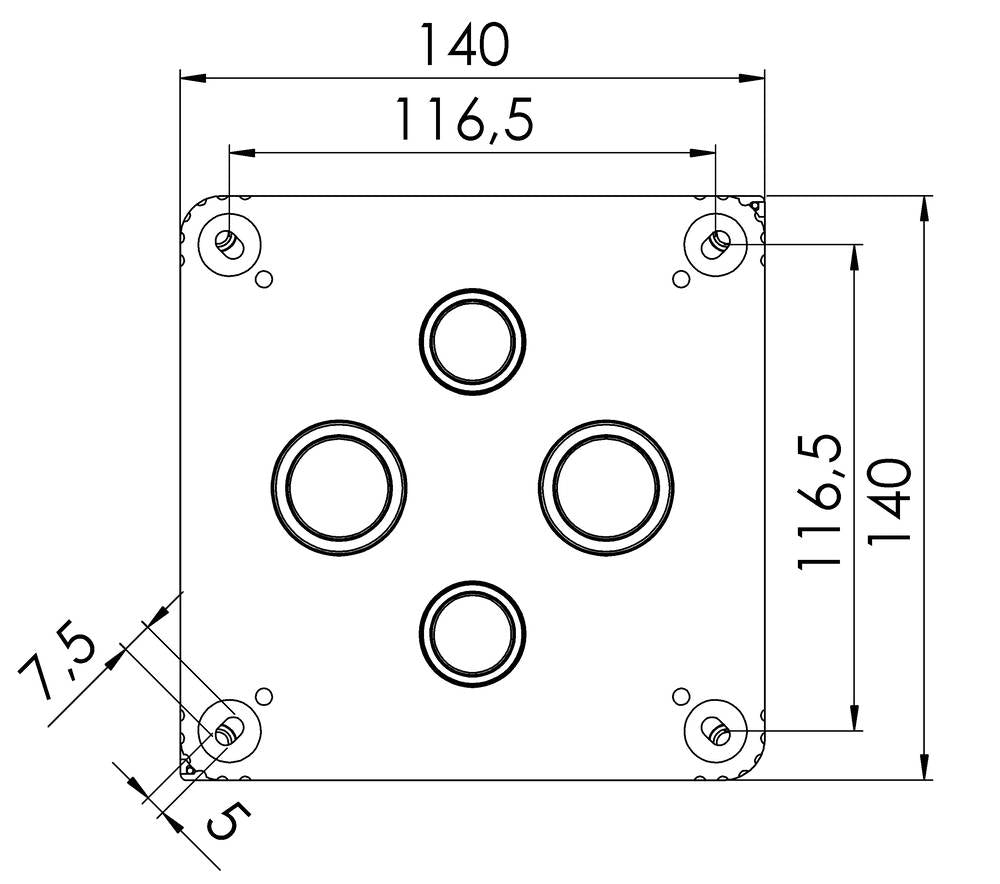

4 knockouts in the bottom 2x M25/M32; 2x M20/M25
4 captive cover screws
including QUIXX EMS self-sealing membrane screw 2x M25; 1x M32
including terminal block 5-poles, 10mm²

Mounting: 4 internal openings outside of the sealing area

Material	Polypropylene
Material sealing gasket	TPE
Temp. range min	-30 °C
Temp. range max	100 °C
Temperatures during install.	-5 °C - 60 °C
Protection class	IP66 / IP67
Glow wire test	750 °C
Voltage	690 V
Rated current / A (Terminal)	57 A
Rated cross section	10 mm²
Terminals/poles	5-pole, 10,0 mm²
Fixing	4 internal openings
Ø cable diameter min	6 mm
Ø cable diameter max	21 mm
External dimensions LxWxH	140 x 140 x 82mm
Using for cable gland
Product Color	RAL 9001
WISKA-Order no.	10062211
Type	COMBI 1010/5 WH
