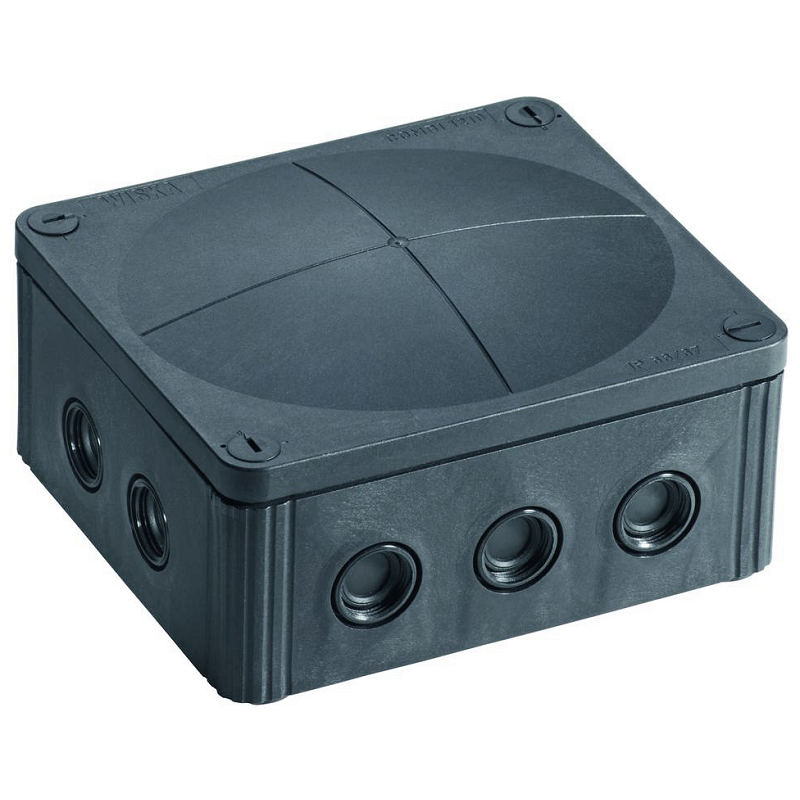

Wiska combi 1210/5 bk polypropylene 160 x 140 x 81mm enclosure black (with 5 pole terminal)
£16.32
£16.32
Sale
Sold out
Price excludes VAT, which will be calculated at checkout.
In stock (100 units), ready to be shipped
Have a Question
Couldn't load pickup availability
Description
Wiska Combi 1210/5 BK Polypropylene 160 x 140 x 81mm Enclosure Black (with 5 Pole Terminal) - 10101463
Part No Description
10101463 Combi 1210/5 BK Polypropylene 160 x 140 x 81mm Enclosure Black (with 5 Pole Terminal)
IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
Equipment:
10 M20 threaded membrane entries and M25 knockouts
4 membrane cable entries through rear
4 captive cover screws

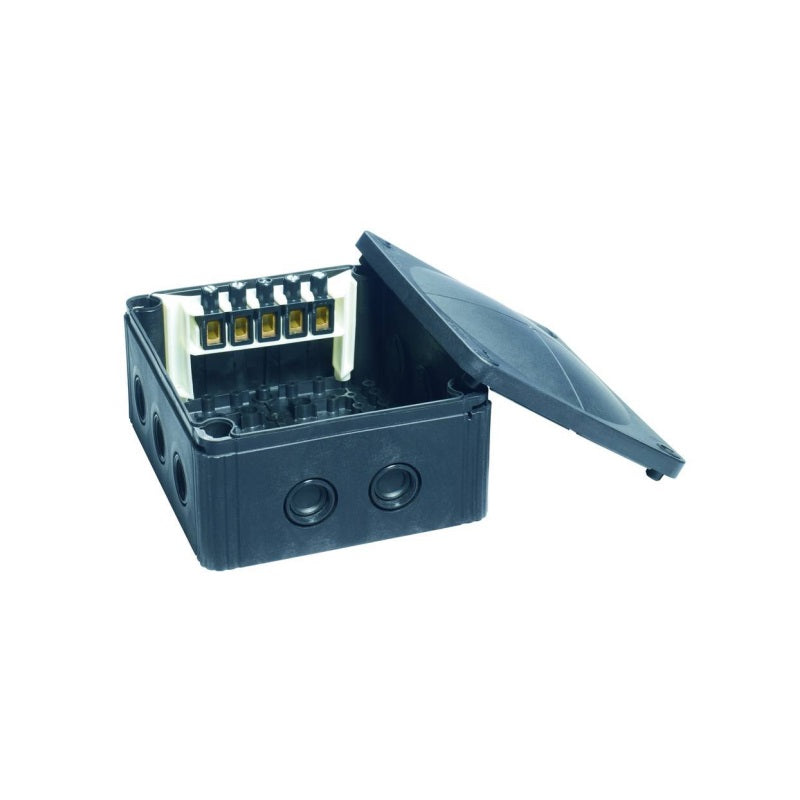

inclusive terminal block 5-poles, 10mm²
Mounting: 4 internal openings outside of the sealing area
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Protection class | IP66 / IP67 |
| Glow wire test | 750 °C |
| Voltage | 690 V |
| Rated current / A (Terminal) | 57 A |
| Rated cross section | 10 mm² |
| Terminals/poles | 5-pole, 10,0 mm² |
| Fixing | 4 internal openings |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 12 mm |

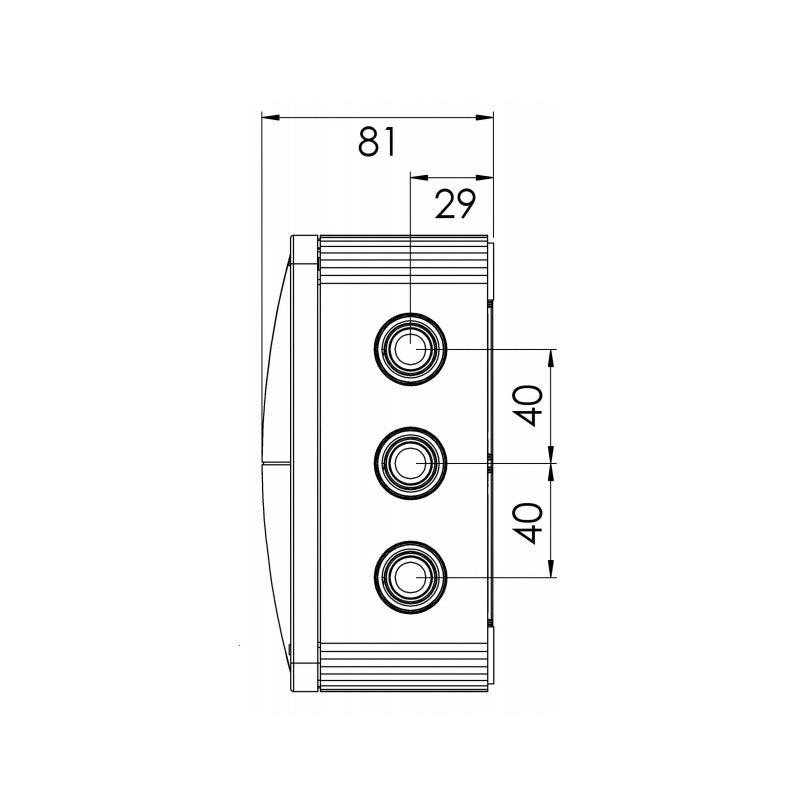

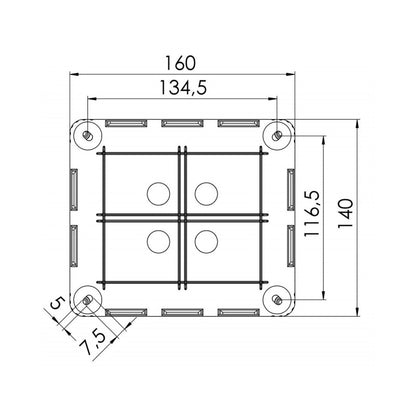

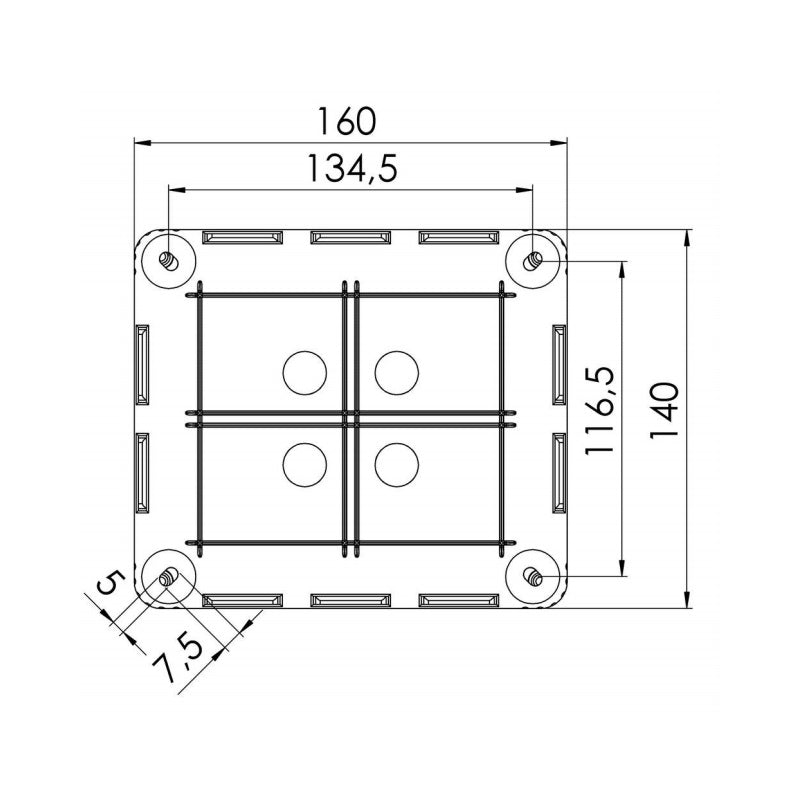

| External dimensions LxWxH | 160 x 140 x 81mm |
| Using for cable gland |  |
| Product Color | RAL 9005 |
| WISKA-Order no. | 10101463 |
| Type | COMBI 1210/5 BK |
