Wiska combi 1610/clear/3 bk polypropylene 200 x 160 x 94mm enclosure black clear lid (with 3 pole terminal)

£33.20
£33.20
Sale Sold out

Price excludes VAT, which will be calculated at checkout.

In stock (100 units), ready to be shipped
Have a Question
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Description

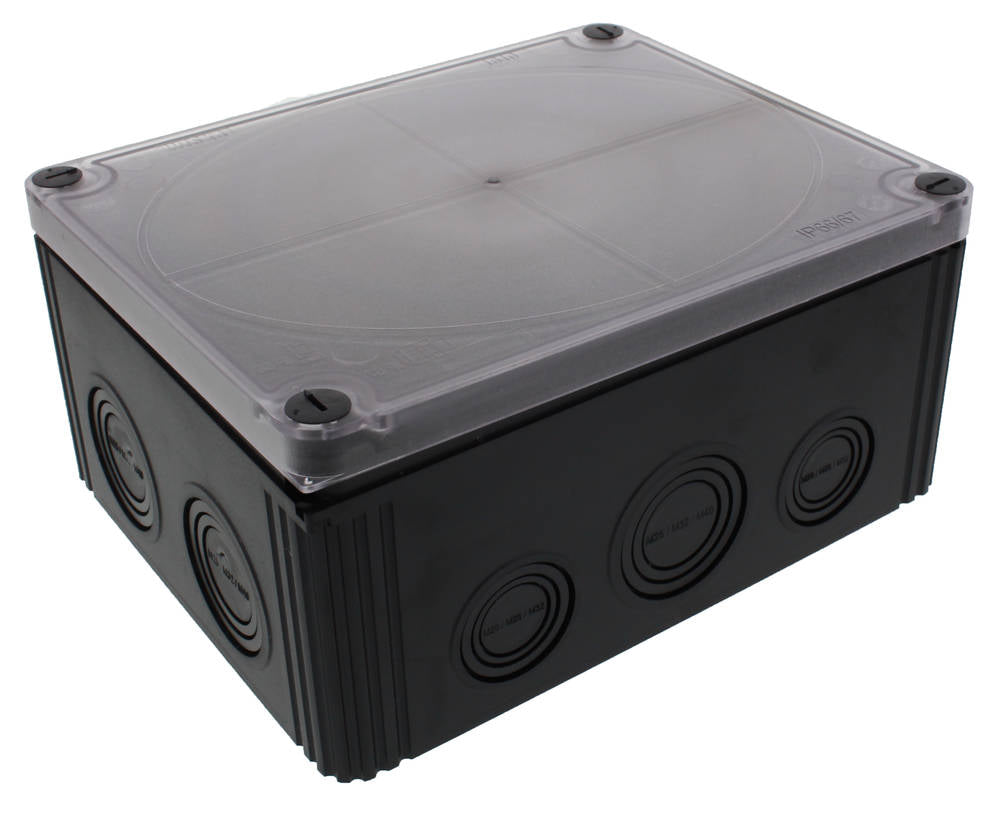

Wiska Combi 1610/CLEAR/3 BK Polypropylene 200 x 160 x 94mm Enclosure Black Clear Lid (with 3 Pole Terminal) - 10110742

Part No            Description

10110742          Combi 1610/CLEAR/3 BK Polypropylene 200 x 160 x 94mm Enclosure Black Clear Lid (with 3 Pole Terminal)

IP66: using the QUIXX self sealing membrane screw
IP67: using the knockout entry together with ESKV cable gland

Equipment:

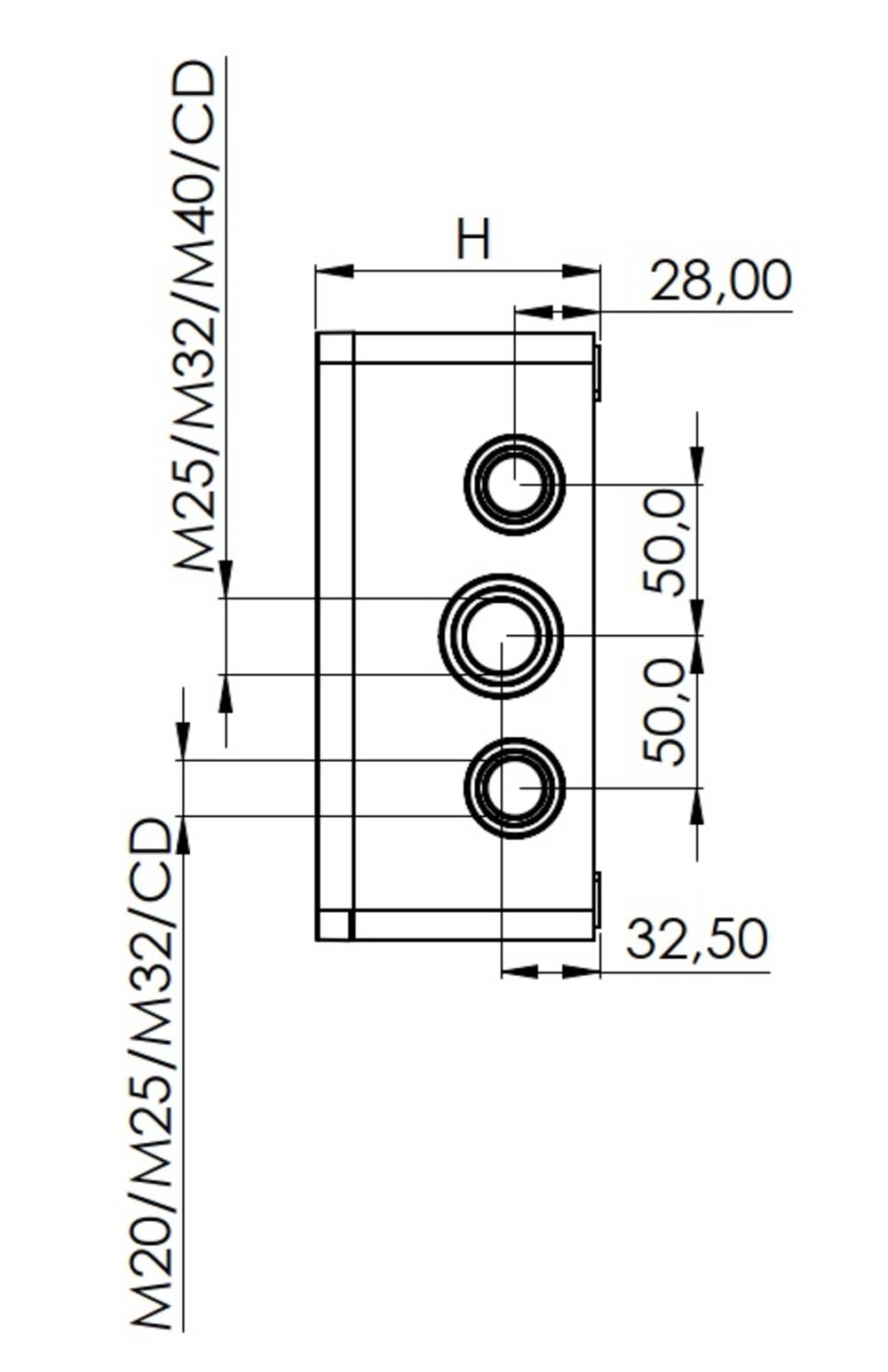

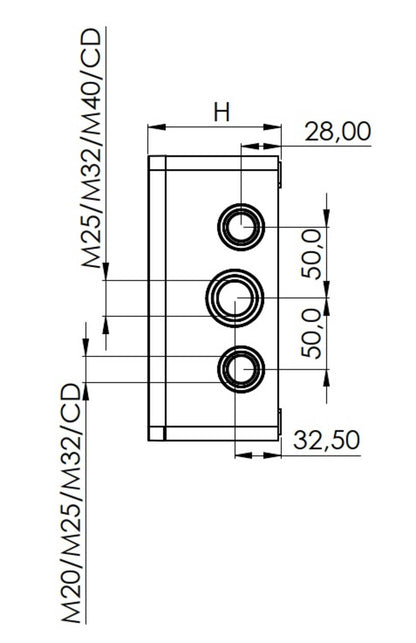

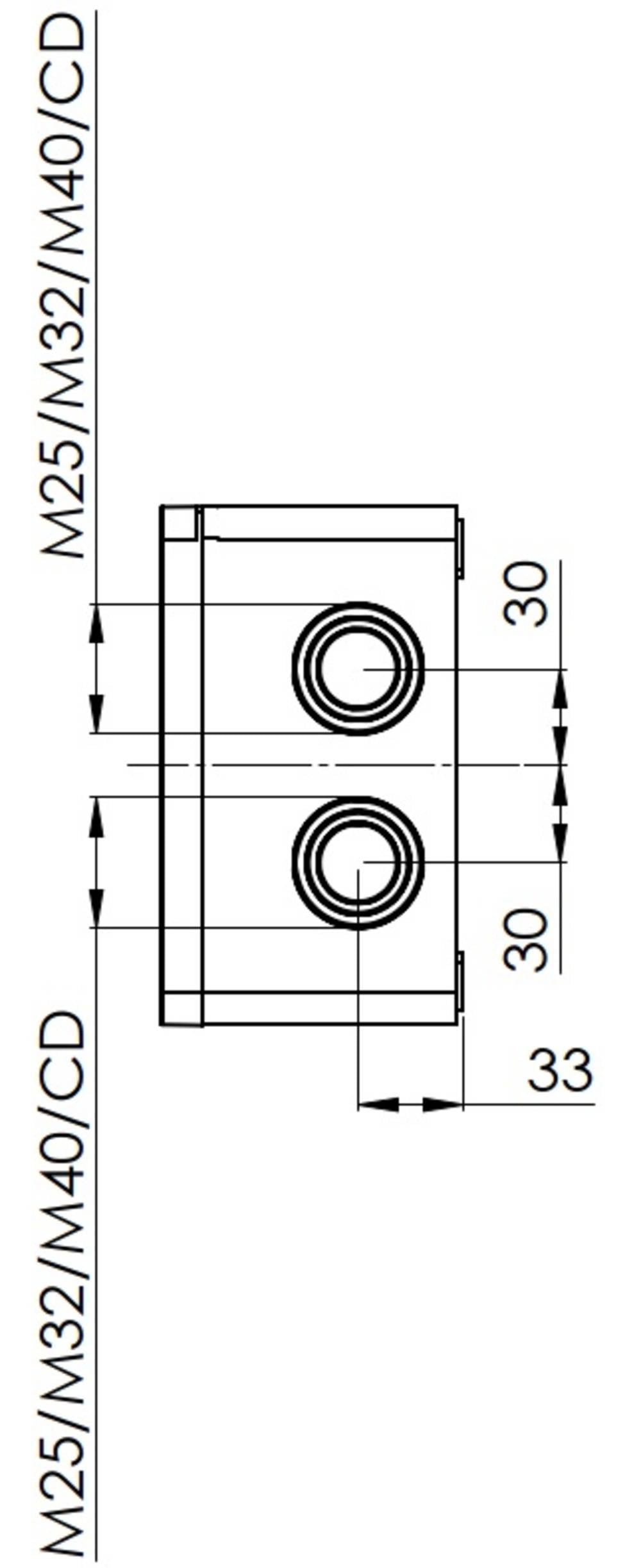

10 knockouts side 6x M25/M32/M40; 4x M20/M25/M32

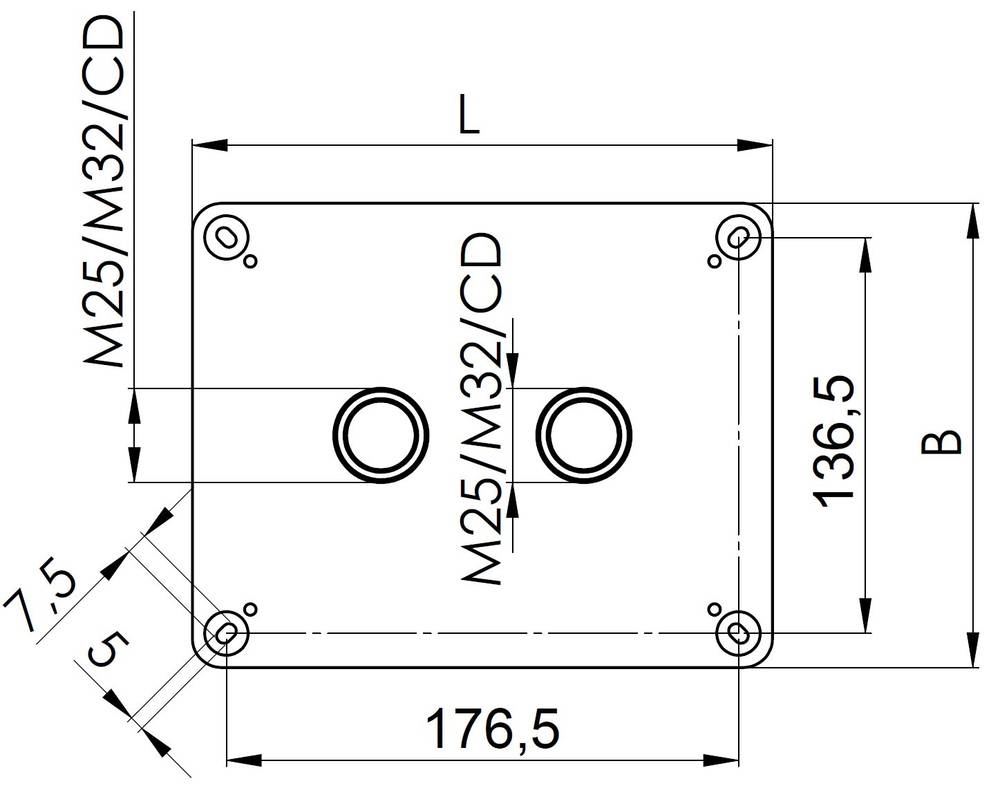

2 knockouts in the bottom 2x M25/M32
4 captive cover screws
including 3 QUIXX membrane spout EMT 32
CD (cable diameter) 6-28mm

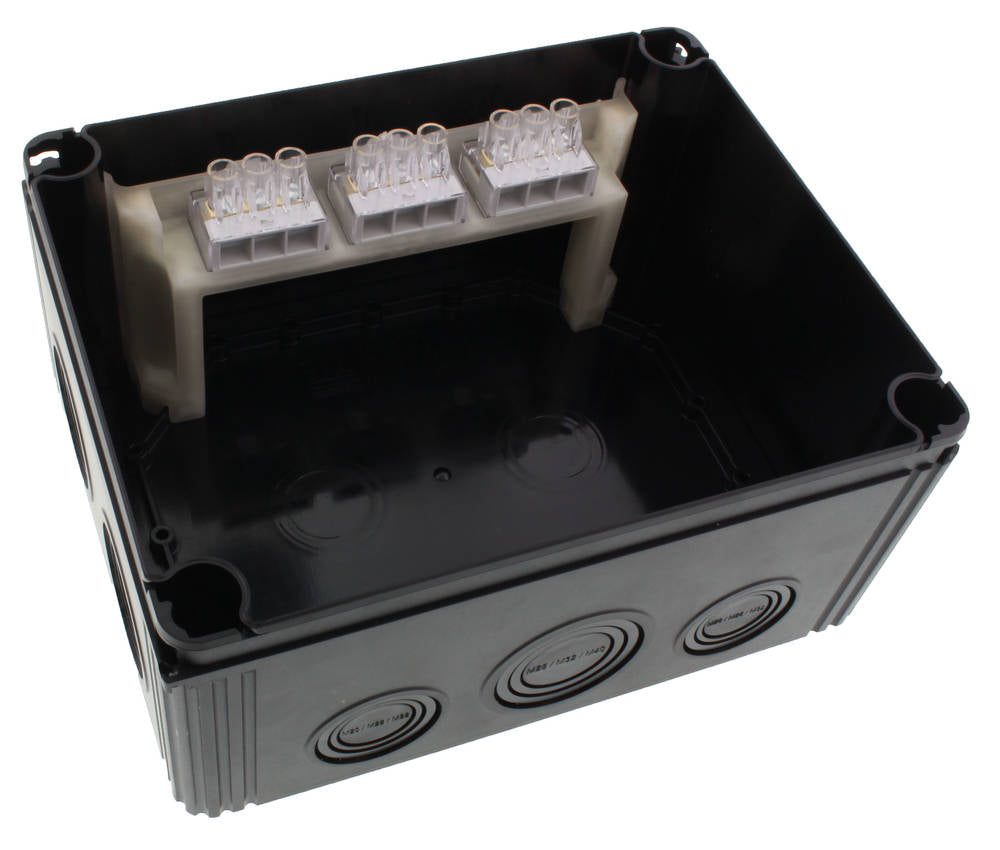

inclusive terminal block 3-poles, 16mm²
Colour casing: RAL 9005 (black)
Colour lid: clear

Mounting: 4 internal openings outside of the sealing area

Material Polycarbonate
Material sealing gasket PU
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66 / IP67
Glow wire test 960 °C
Voltage 690 V
Rated cross section 16 mm²
Terminals/poles 3-pole, 16,0 mm²
External dimensions LxWxH 200 x 160 x 94 mm
Product Color RAL 9005
Order no. RAL 9005 10110742
Type COMBI 1610/3 BK DK
