Wiska combi 1610/clear/3 lg polypropylene 200 x 160 x 94mm enclosure grey clear lid (with 3 pole terminal)

Description

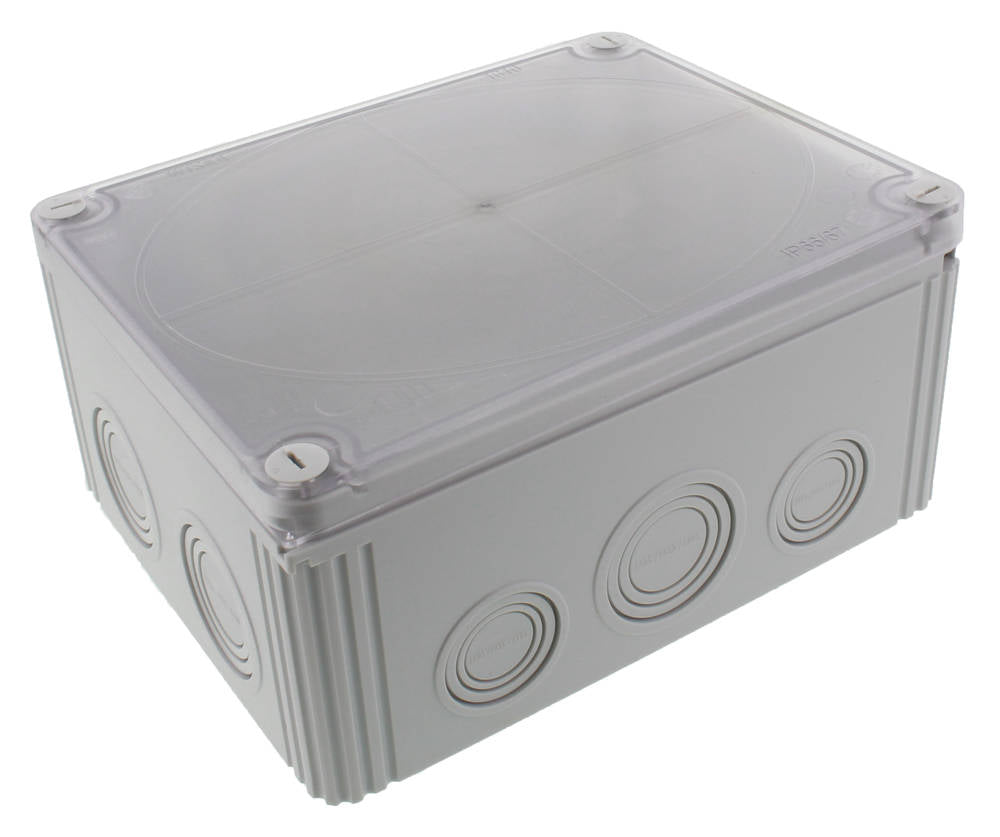

Wiska Combi 1610/CLEAR/3 LG Polypropylene 200 x 160 x 94mm Enclosure Grey Clear Lid (with 3 Pole Terminal) - 10110738

Part No            Description

10110738          Combi 1610/CLEAR/3 LG Polypropylene 200 x 160 x 94mm Enclosure Grey Clear Lid (with 3 Pole Terminal)

IP66: using the QUIXX self sealing membrane screw
IP67: using the knockout entry together with ESKV cable gland

Equipment:

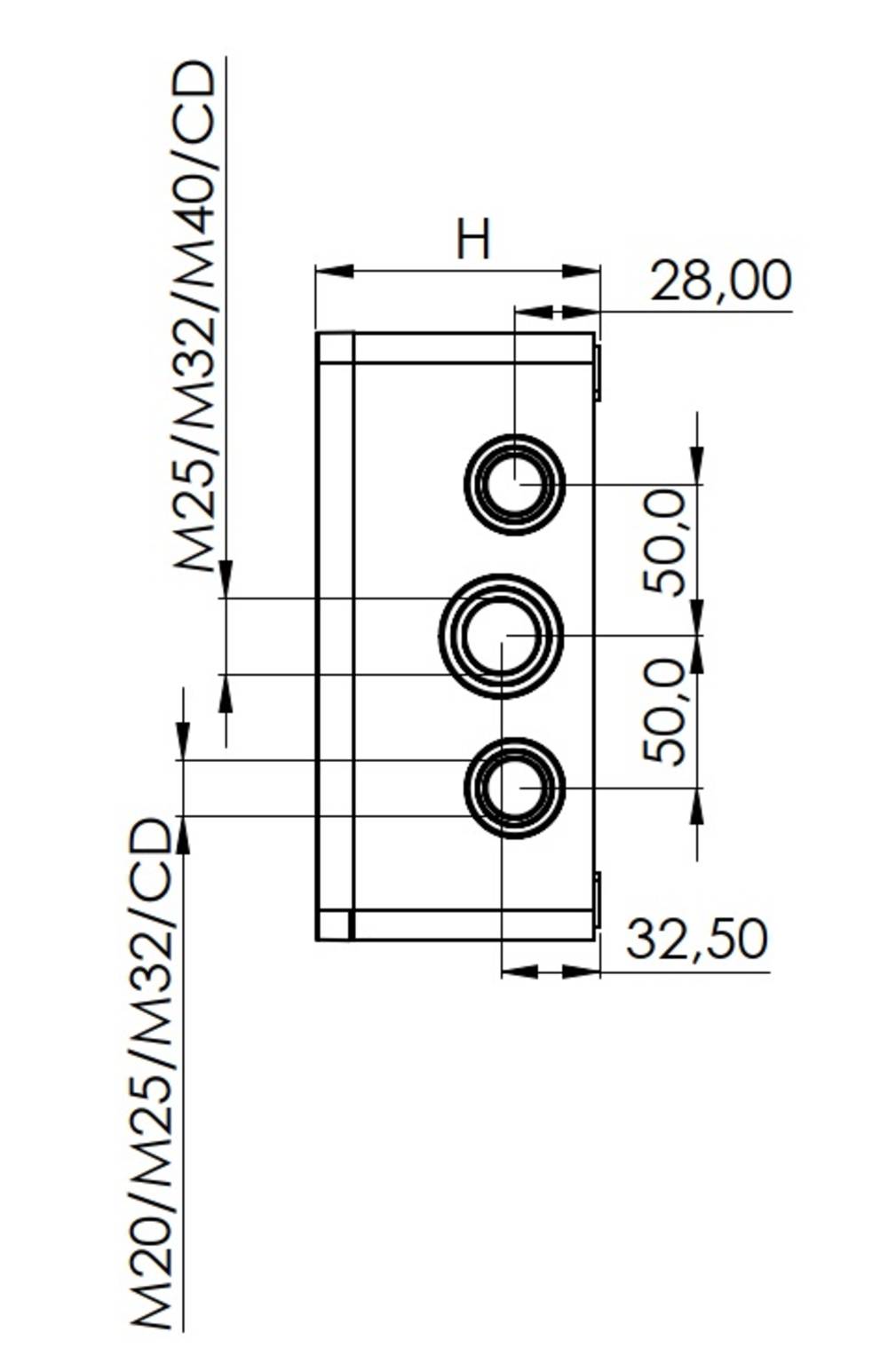

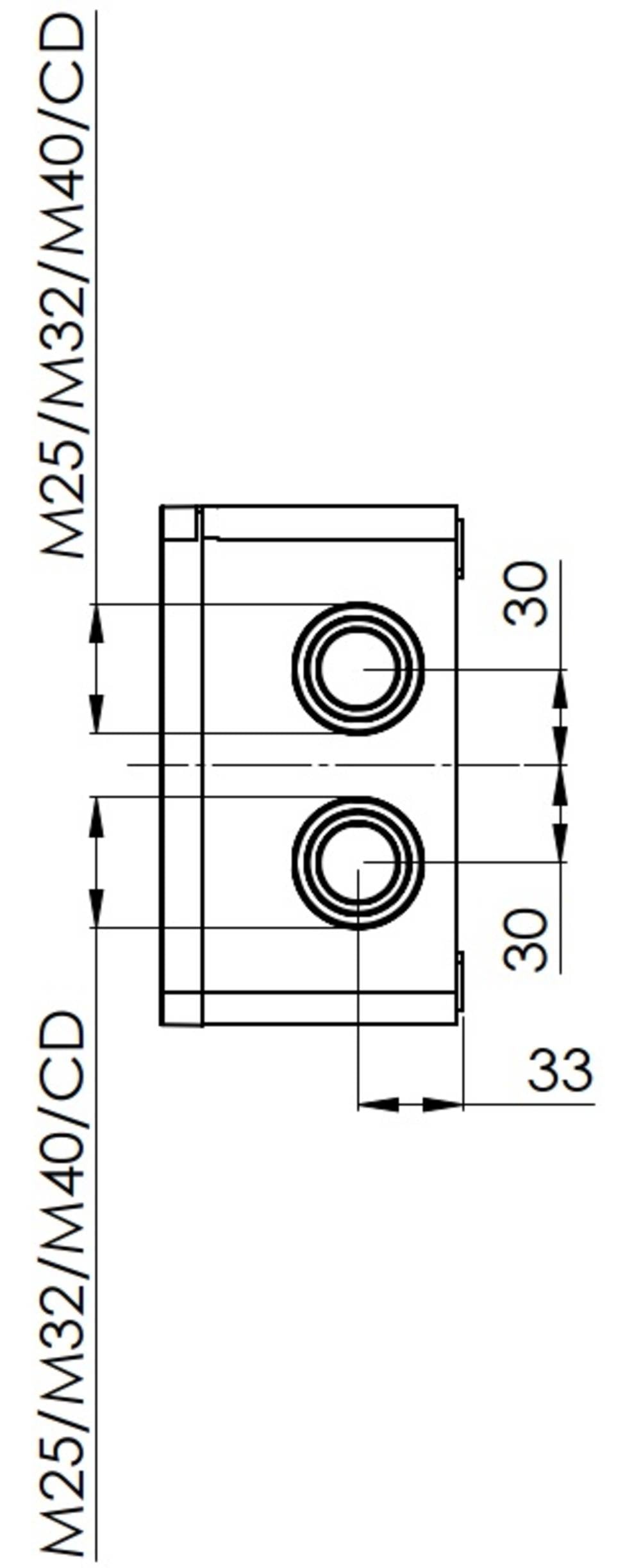

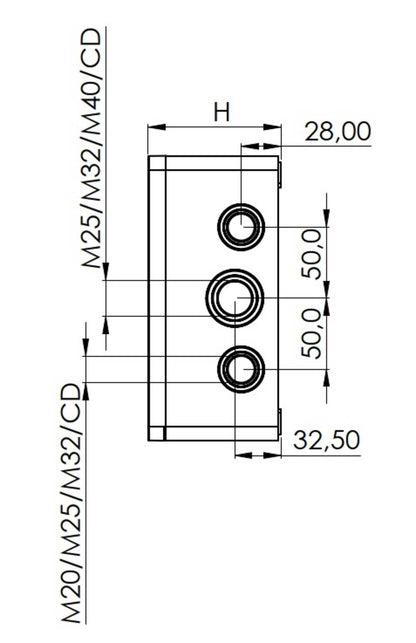

10 knockouts side 6x M25/M32/M40; 4x M20/M25/M32

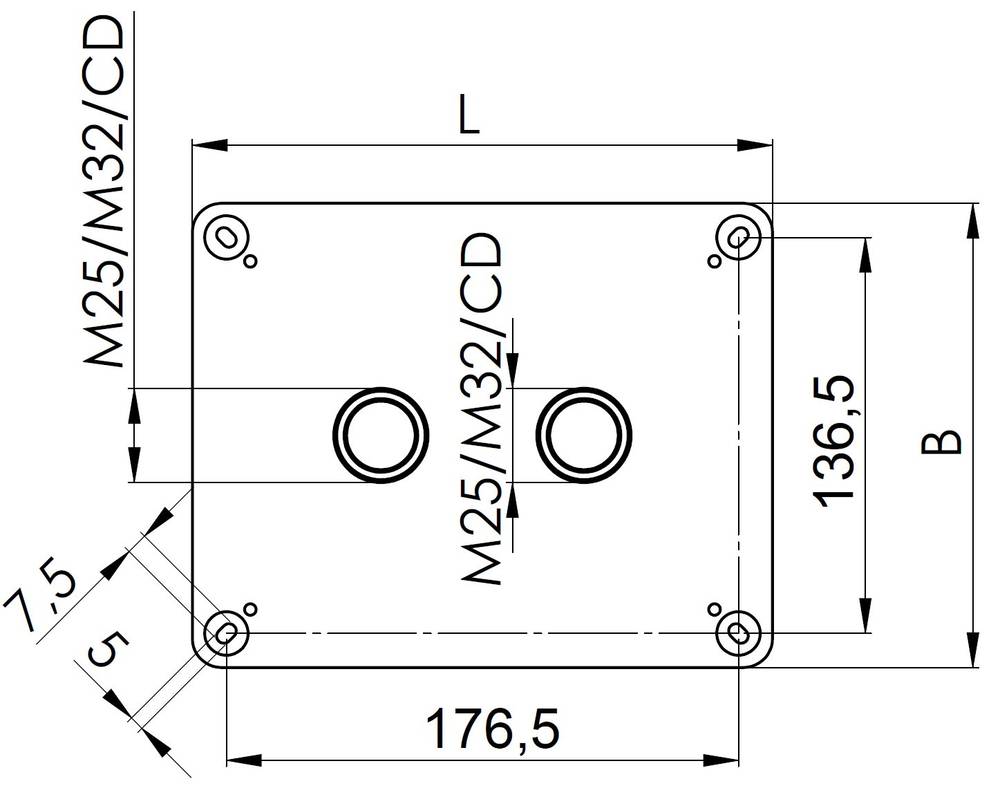

2 knockouts in the bottom 2x M25/M32
4 captive cover screws
including 3 QUIXX membrane spout EMT 32
CD (cable diameter) 6-28mm

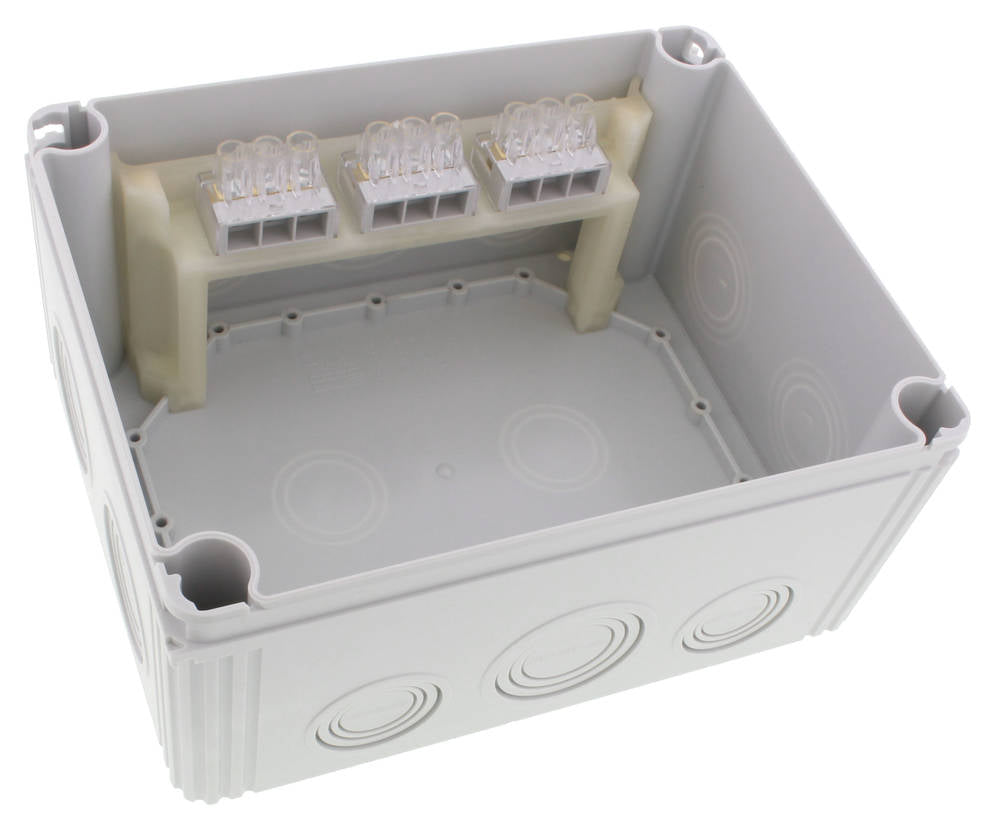

inclusive terminal block 3-poles, 16mm²
Colour casing: RAL 7035 (grey)
Colour lid: clear

Mounting: 4 internal openings outside of the sealing area
