Wiska combi 308 bk polypropylene 85 x 85 x 51mm enclosure black ip66 3x3 pole wago connectors
£4.96
£4.96
Sale
Sold out
Price excludes VAT, which will be calculated at checkout.
In stock (100 units), ready to be shipped
Have a Question
Couldn't load pickup availability
Description

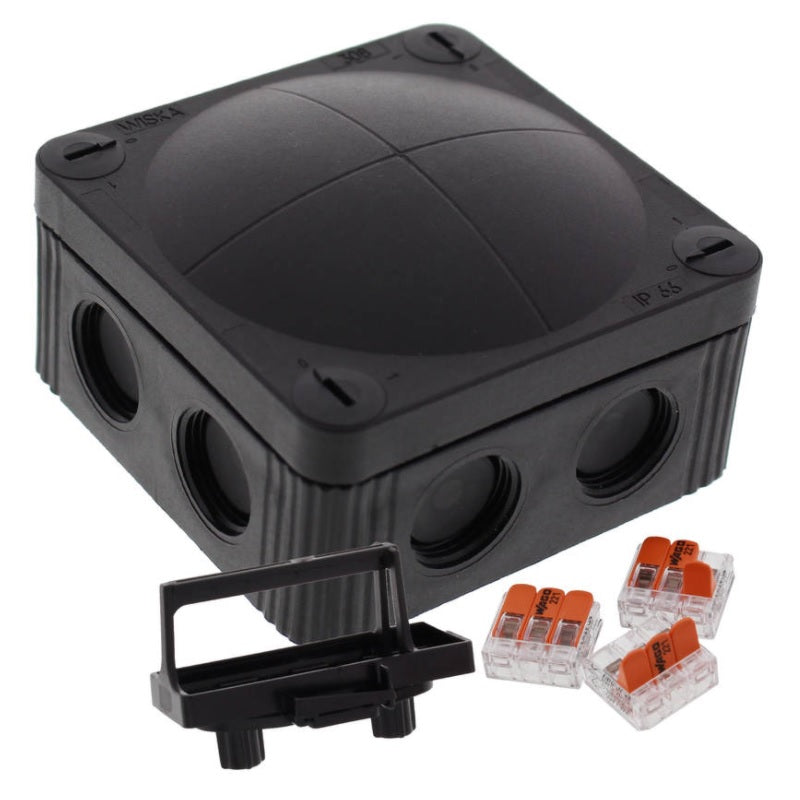

Wiska Combi 308 BK Polypropylene 85 x 85 x 51mm Enclosure Black IP66 3x3 Pole Wago Connectors - 10110404
Part No Description
10110404 Combi 308 BK Polypropylene 85 x 85 x 51mm Enclosure Black IP66 3x3 Pole Wago Connectors
IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
Equipment:

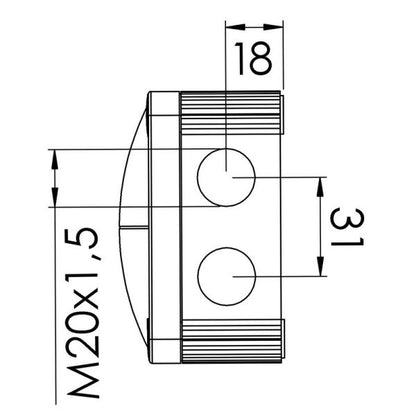

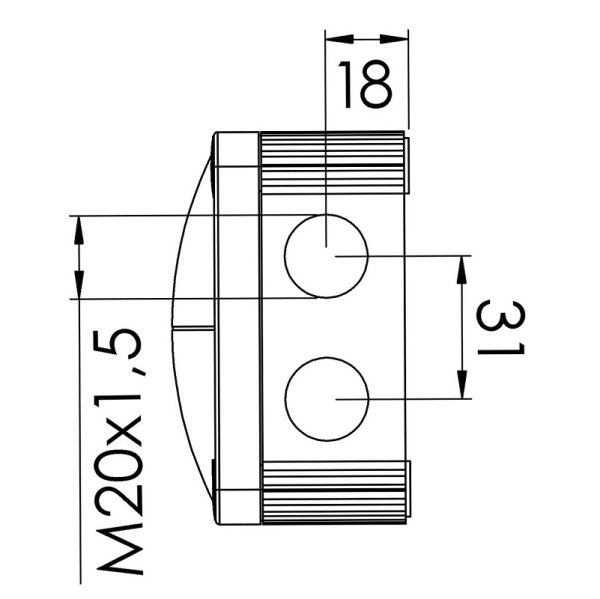

8 M20 threaded membrane entries
4 captive cover screws

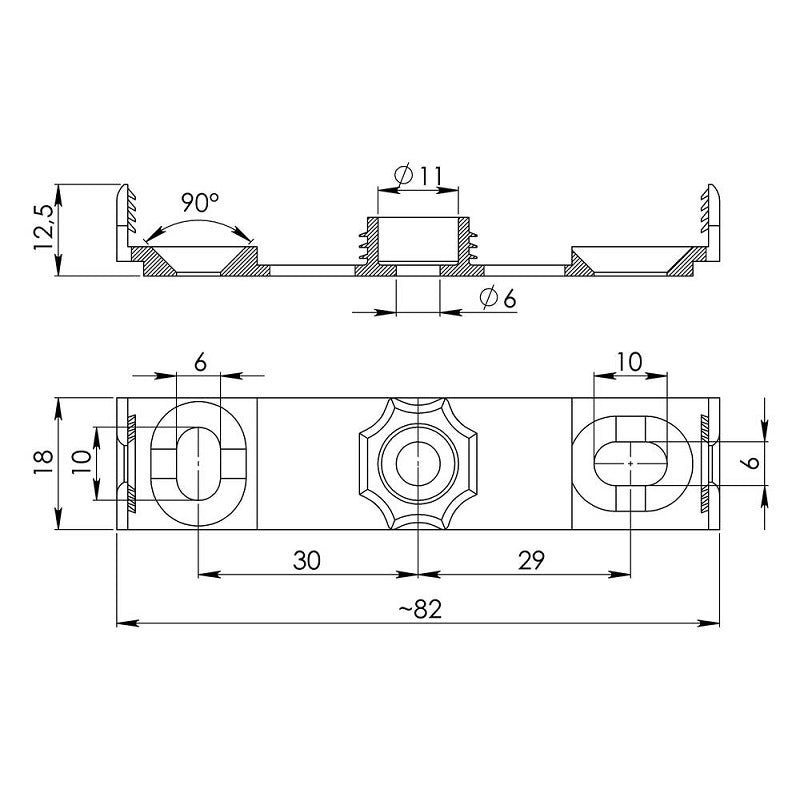

including mounting clip

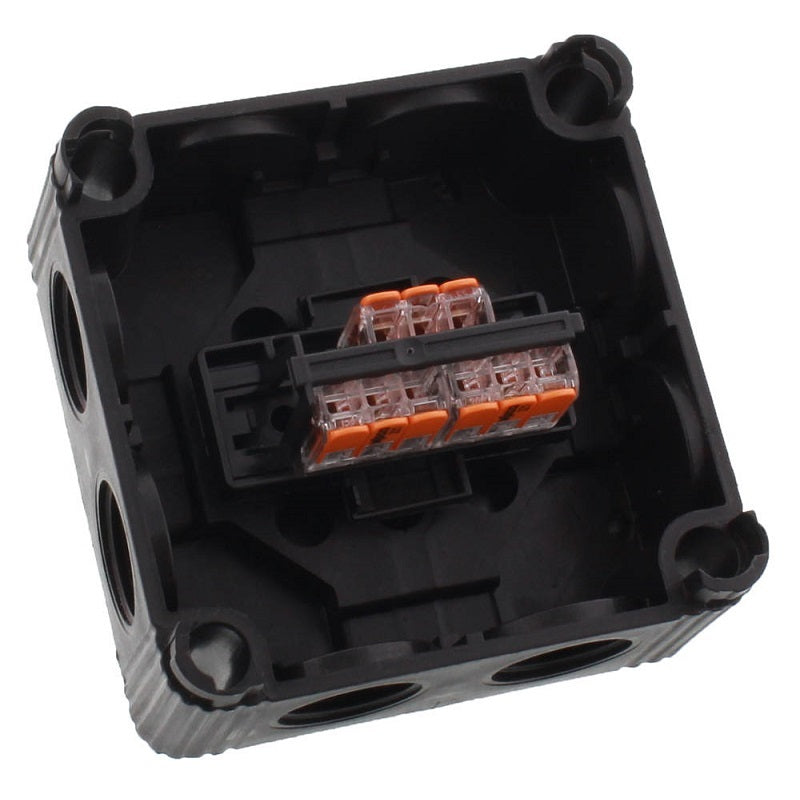

including terminal carrier on quick mounting plate mounted with 3x WAGO 221-413

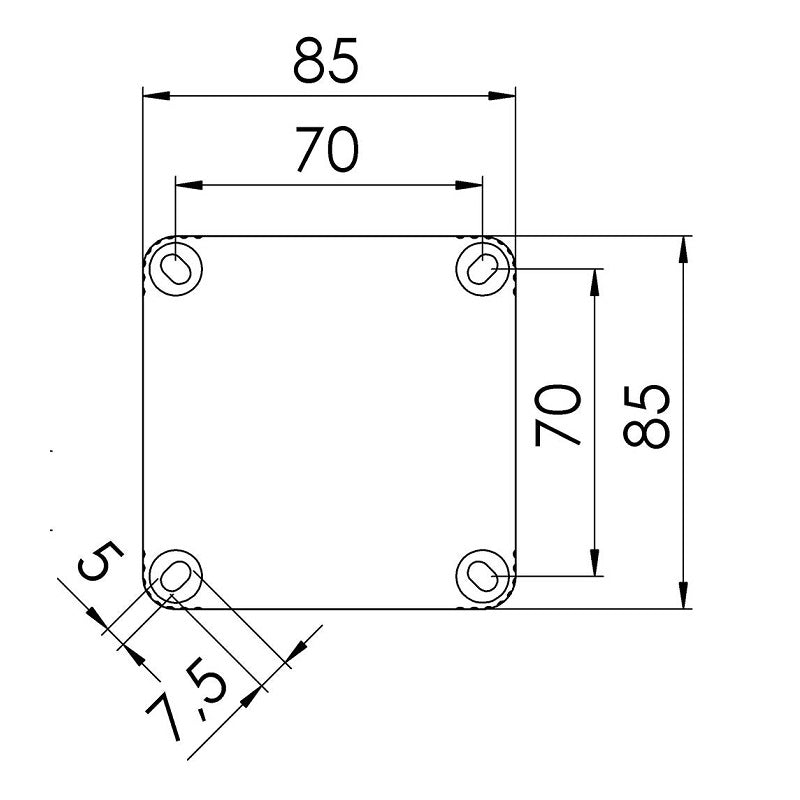

Fixing: With mounting clip or 4 internal openings outside of the sealing area
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Protection class | IP66 / IP67 |
| Glow wire test | 750 °C |
| Voltage | 400 V |
| Rated cross section | 4 mm² |
| Fixing | 4 internal openings |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 12 mm |
| External dimensions LxWxH | 85 x 85 x 51mm |
| Type of cable gland | M 20 x 1,5 |
| Using for cable gland |  |
| Product Color | RAL 9005 |
| WISKA-Order no. | 10110404 |
| Type | COMBI 308 BK / 3-221-413 |
