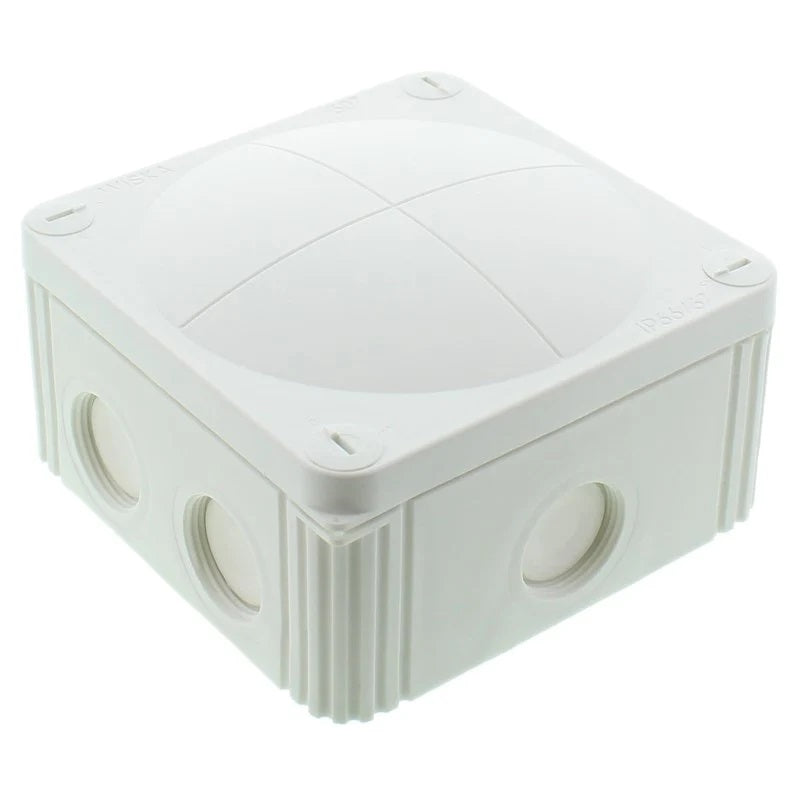

Wiska combi 607/5 wh polypropylene 110 x 110 x 66mm enclosure white (with 5 pole terminal)

Description

Wiska COMBI 607/5 WH Polypropylene 110 x 110 x 66mm Enclosure White (with 5 Pole Terminal) - 10110092

Part No            Description

10110092          COMBI 607/5 WH Polypropylene 110 x 110 x 66mm Enclosure White (with 5 Pole Terminal)

IP66: using the membrane entry
Ø cable: 5.2 - 17 mm
IP67: using the threaded entry together with ESKV cable gland
Ø cable: 9.0 - 17 mm

Mounting: 4 internal openings outside of the sealing area

Equipment:
7 elastic, self-sealing puncture-membranes for cable entry on the side and 3 on the bottom
7 integrated M25 thread for mounting without lock nut
4 captive cover screws
terminal block 5-pole, 6mm²
2 reduction adaptors KRM 25/20

Material	Polypropylene
Material sealing gasket	TPE
Temp. range min	-30 °C
Temp. range max	100 °C
Temperatures during install.	-5 °C - 60 °C
Protection class	IP66 / IP67
Glow wire test	750 °C
Voltage	690 V
Rated current / A (Terminal)	41 A
Rated cross section	5 x 6mm²
Terminals/poles	6 mm²
Fixing	4 internal openings
Ø cable diameter min	5,2 mm
Ø cable diameter max	17 mm

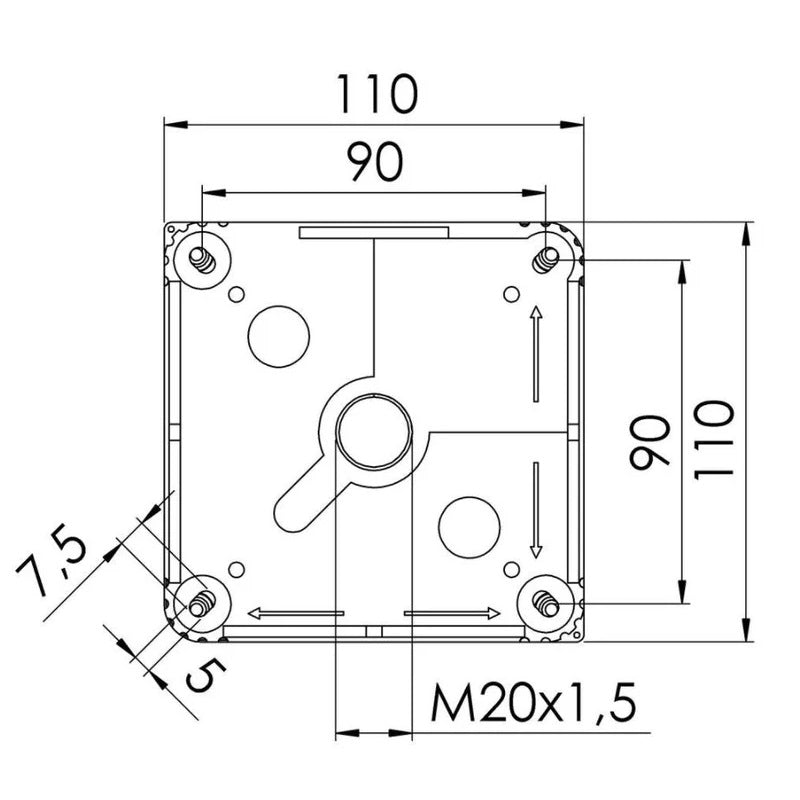

External dimensions LxWxH	110 x 110 x 66 mm
Using for cable gland
Product Color	RAL 9001
WISKA-Order no.	10110092
