Wiska shieldgland m20 pack pro ip68 c/w brass locknut, spring clip & earth tag clamping range 7-16mm (2 per pack)

£10.67
£10.67
Sale Sold out

Price excludes VAT, which will be calculated at checkout.

In stock (100 units), ready to be shipped
Have a Question
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Description

Wiska ShieldGland M20 Pack Pro IP68 c/w Brass Locknut & Earth Tag, Clamping Range 7-16mm (2 Per Pack) – 10112394

Part No                   Description

10112394                ShieldGland M20 Pack Pro IP68 c/w Brass Locknut & Earth Tag, Clamping Range 7-16mm (2 Per Pack)

IP68, Plastic armoured cable gland, no shroud required, suitable for armoured, SY / CY and single-core, complete with locknut, E-Spring and earth tag.

Material Sealing Gasket: TPE
Temp. Range Min: -40 °C
Temp. Range Max: 120 °C
Protection Class: IP68 (5 bar 30 min)

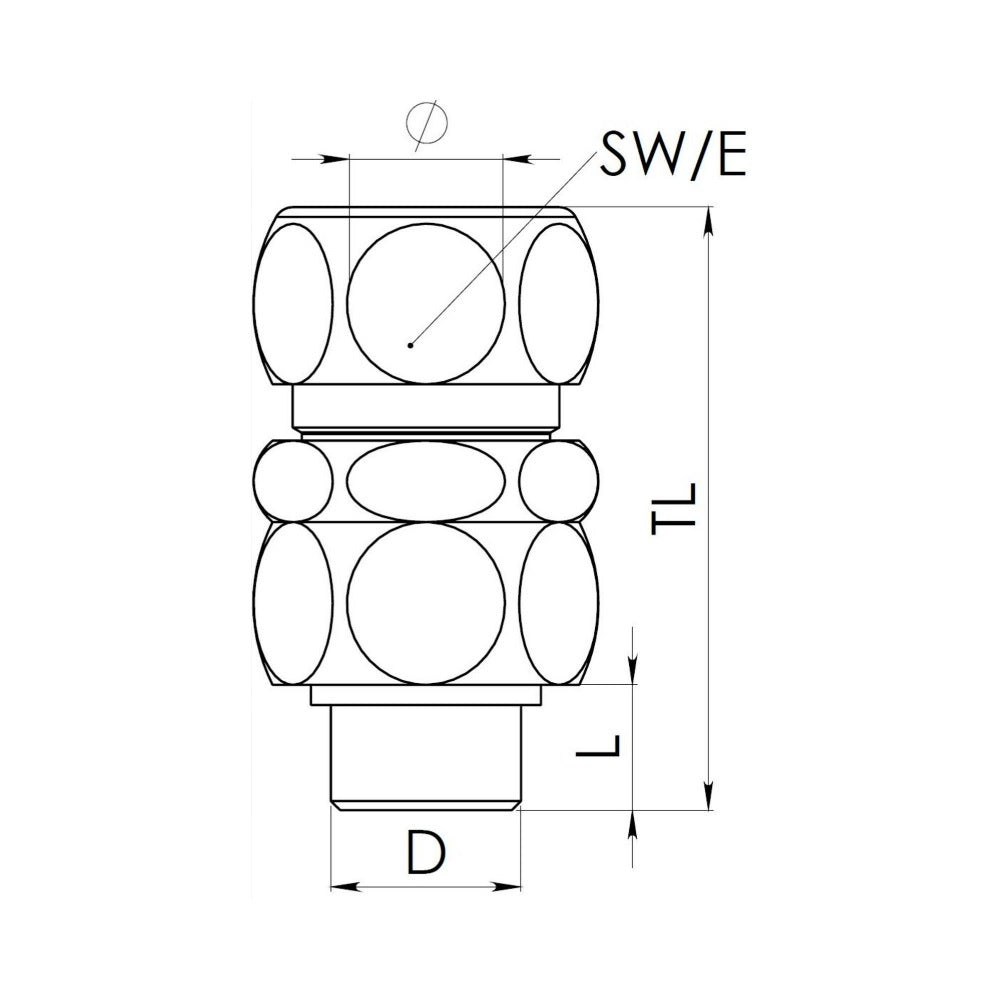

Thread Type: M
Connection Thread Ø: 20mm
Lead: 1.5mm
Length Screw-in Thread L: 11mm
Cable Diameter Min Ø: 7mm
Cable Diameter Max Ø: 16mm
Cable Below Cable Shield Max Ø: 7mm - 11mm
Key Width SW: 27mm
Collar Diameter (E): 30mm
Total length TL: 57mm - 63 mm
Type: ShieldGLAND Pro M20S
Packing Unit: 2
