Wiska sprint® glp20 plus cable gland with locknut ip68 red (pack of 10)

£5.10
£5.10
Sale Sold out

Price excludes VAT, which will be calculated at checkout.

In stock (100 units), ready to be shipped
Have a Question
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Description

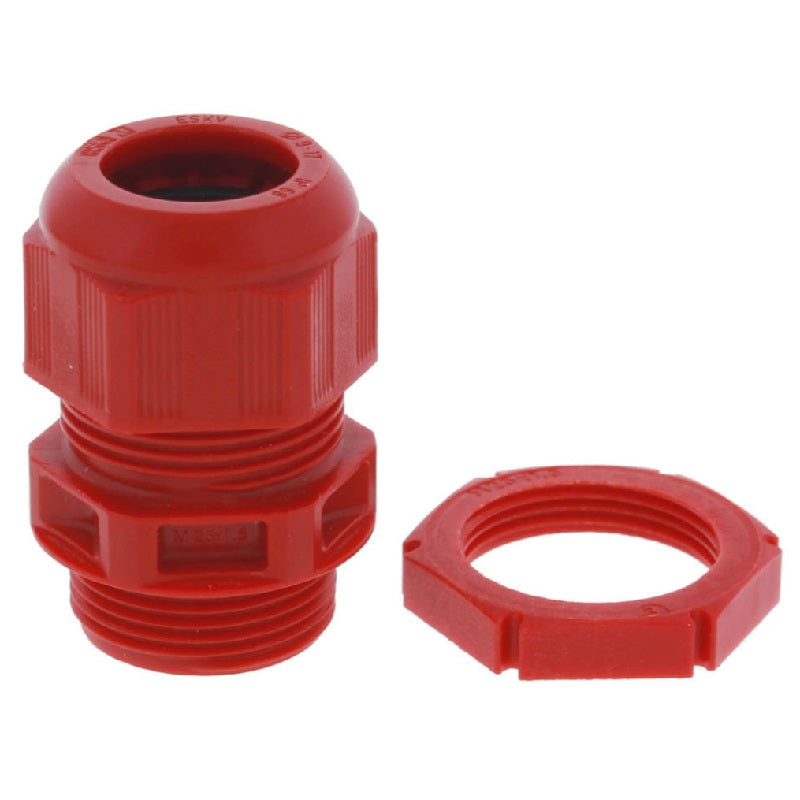

Wiska Sprint® GLP20 Plus Cable Gland with locknut IP68 Red (Pack of 10) – 10100614

Part No            Description

10100614          Sprint® GLP20 Plus Cable Gland with locknut IP68 Red (Pack of 10)

Material cable gland Polyamide
Material sealing gasket EPDM
Protection class IP68 (5 bar 30 min), IP69
Temp. range min -40 °C
Temp. range max 100 °C
Glow wire test 750 °C
Thread type M

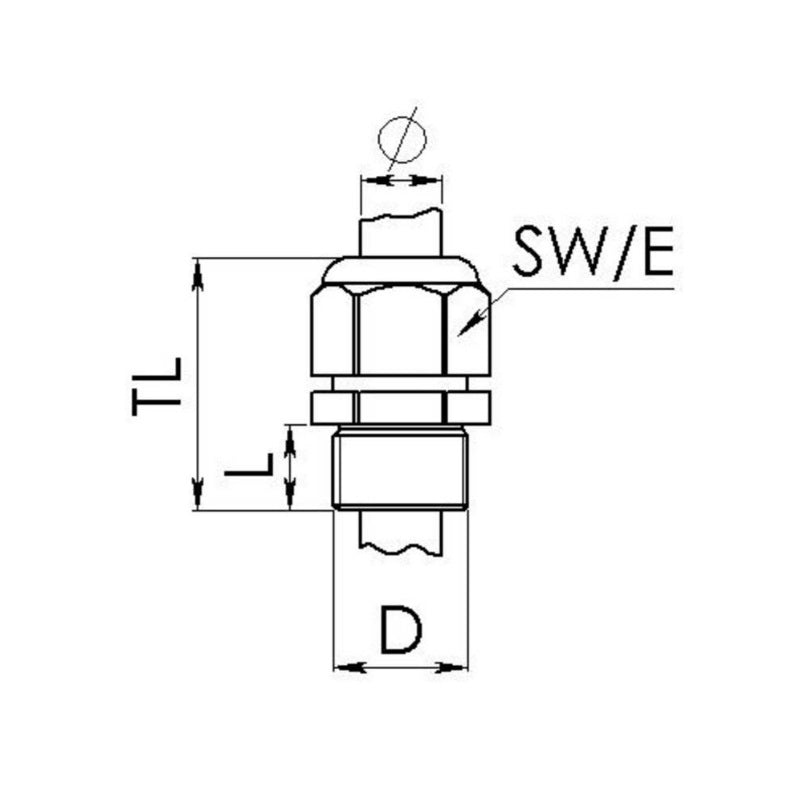

Ø Connection thread D 20
Lead 1,5
Length screw-in thread L 10 mm
Ø cable diameter min 7,5 mm
Ø cable diameter max 14 mm
Key width SW 24 mm
Collar diameter (E) 27 mm
Total length TL 36 mm - 45 mm
Type of cable anchorage A
Install. torques fitting 4 N/m
Install. torques fitting/EADR 3 N/m
Install. torques cap nut 3 N/m
Equipment incl. locknut
Product Color RAL 3000
Type GLP20+ red
UK-Number 10100614
WISKA-Order no. 10100614
