Wiska sprint® glp50 cable gland with locknut ip68 grey (pack of 1)

£8.73
£8.73
Sale Sold out

Price excludes VAT, which will be calculated at checkout.

In stock (100 units), ready to be shipped
Have a Question
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Description

Wiska Sprint® GLP50 Cable Gland with locknut IP68 Grey (Pack of 1) – 10112386

Part No            Description

10112386          Sprint® GLP50 Cable Gland with locknut IP68 Grey (Pack of 1)

Material cable gland Polyamide
Material sealing gasket EPDM
Protection class IP69, IP68 (5 bar 30 min)
Temp. range min -40 °C
Temp. range max 100 °C
Glow wire test 750 °C
Thread type M

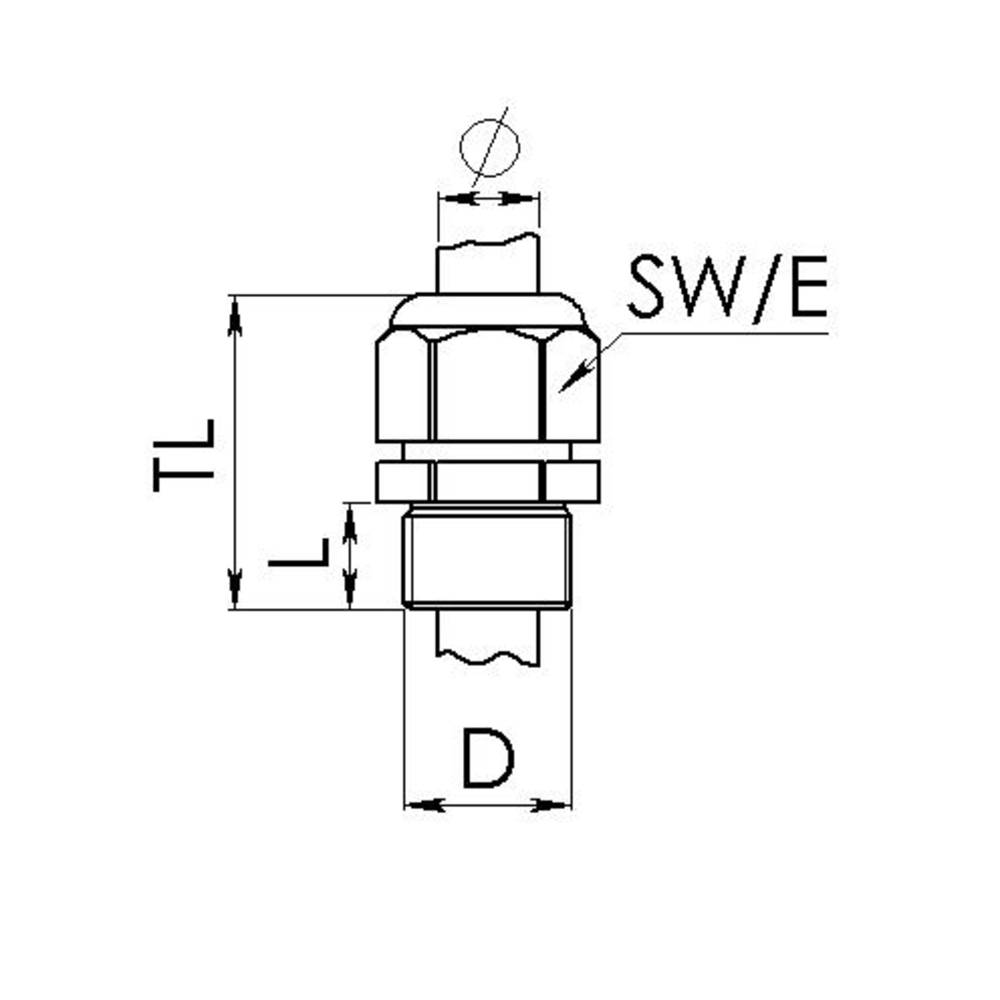

Ø Connection thread D 50
Lead 1,5
Length screw-in thread L 14 mm
Ø cable diameter min 21 mm
Ø cable diameter max 35 mm
Key width SW 55 mm
Collar diameter (E) 61 mm
Total length TL 59 mm - 72 mm
Type of cable anchorage A
Install. torques fitting 30 N/m
Install. torques cap nut 30 N/m
Impact category 5
Equipment Incl. connection thread gasket, incl. locknut
Product Color RAL 7035
Type GLP50 grey
UK-Number 99712
WISKA-Order no. 10112386
