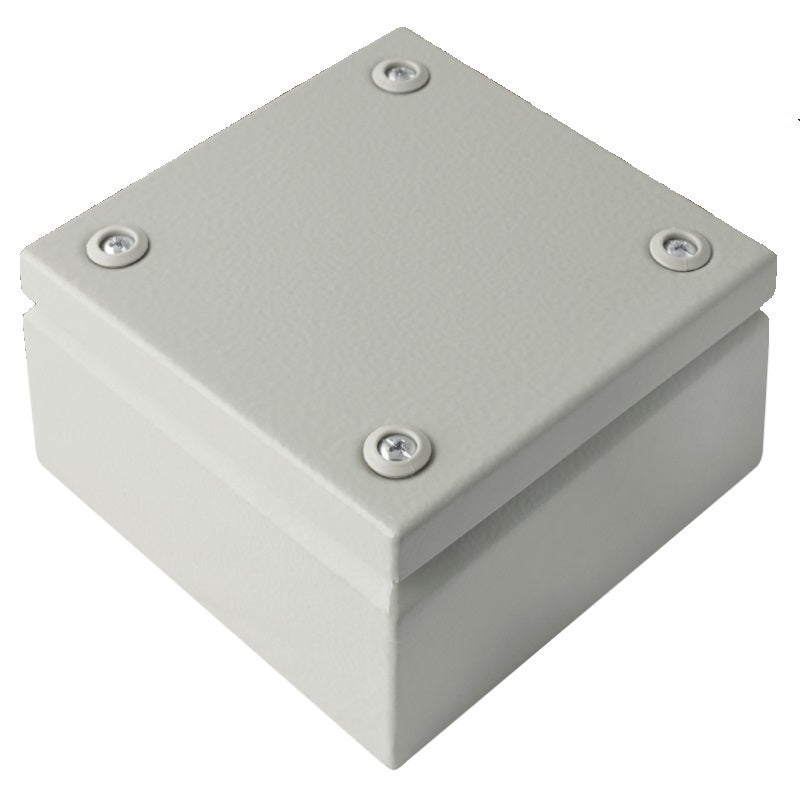

Niglon mild steel terminal box 400mm x 300mm x 120mm

Description

Niglon Mild Steel Terminal Box 400mm x 300mm x 120mm - TS403012

Part No            Description

TS403012           Mild Steel Terminal Box 400mm x 300mm x 120mm

Wall mounting mild steel terminal box painted with epoxy-polyester powder paint. Standard RAL7035 colour. The polyurethane gasket keeps its profile over time to give a high degree of protection against water and dust. Lid fixed by 4 captive screws M5x35. Welded earth studs top and bottom.

Standards: BSEN 60529
Ingress Protection: IP66
Height: 400mm
Width: 300mm
Depth: 120mm
Enclosure Steel Thickness: 1.2mm
Operating Temperature: -25°C to +55°C
Operating Relative Humidity at: +20°C 90%
Operating Relative Humidity at: +40°C 50%
Weight: 5.79 Kg
