Wiska combi 206 bk polypropylene 85 x 49 x 51mm enclosure black ip66 3x3 pole wago connectors
£4.60
£4.60
Sale
Sold out
Price excludes VAT, which will be calculated at checkout.
In stock (100 units), ready to be shipped
Have a Question
Couldn't load pickup availability
Description

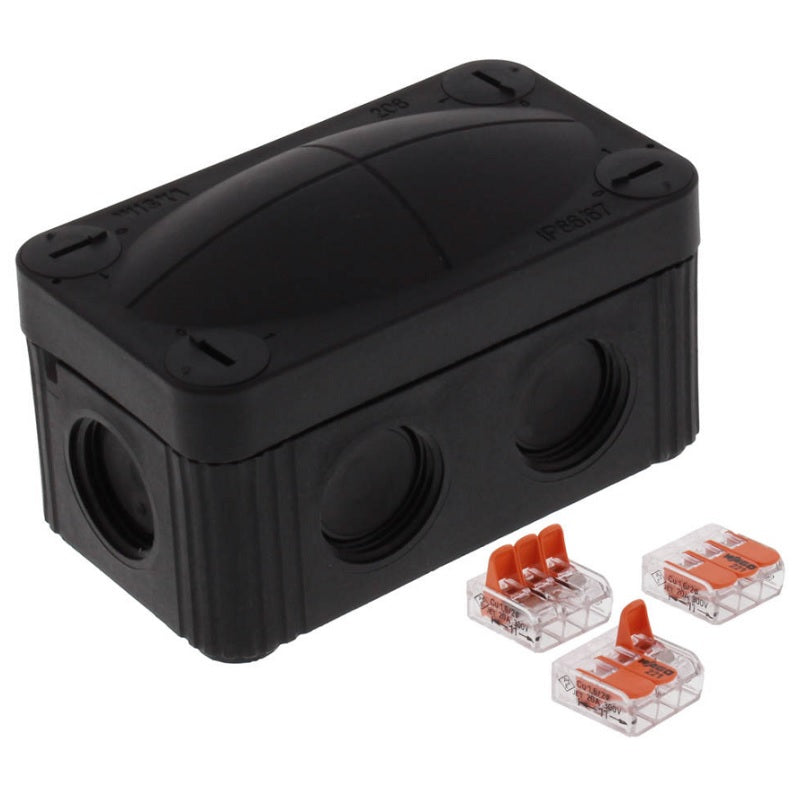

Wiska Combi 206 BK Polypropylene 85 x 49 x 51mm Enclosure Black IP66 3x3 Pole Wago Connectors - 10109900
Part No Description
10109900 Combi 206 BK Polypropylene 85 x 49 x 51mm Enclosure Black IP66 3x3 Pole Wago Connectors
IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
Equipment:

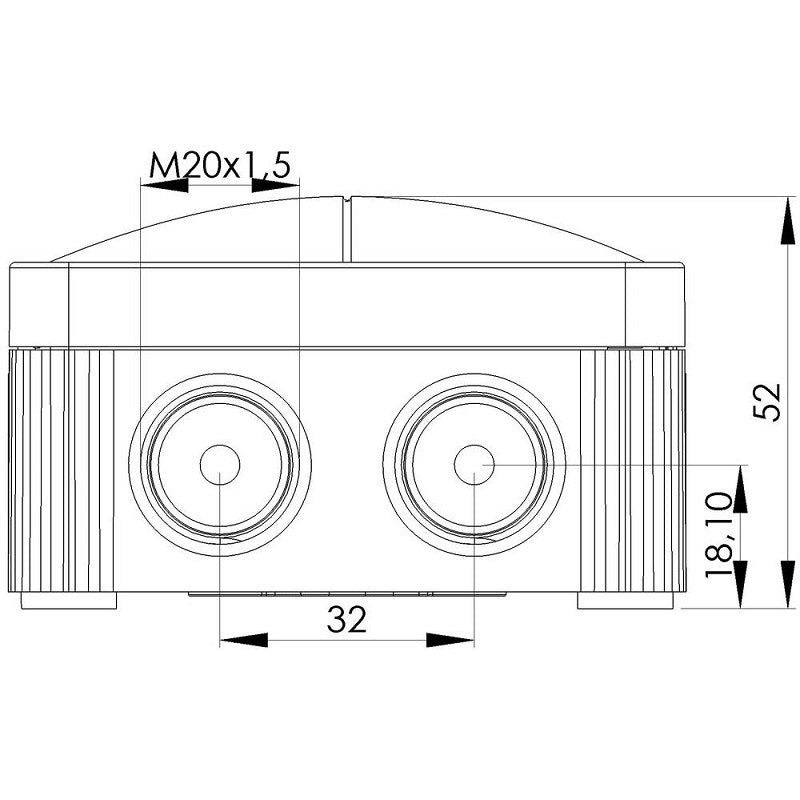

6 M20 threaded membrane entries
2 membrane cable entries through rear
4 captive cover screws
including 3x WAGO 221-413 enclosed loose
Fixing: With 4 internal openings outside of the sealing area
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Protection class | IP66 / IP67 |
| Glow wire test | 750 °C |
| Voltage | 400 V |
| Rated cross section | 1,5 mm² |
| Terminals/poles | 4 mm² |
| Fixing | 4 internal openings |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 12 mm |

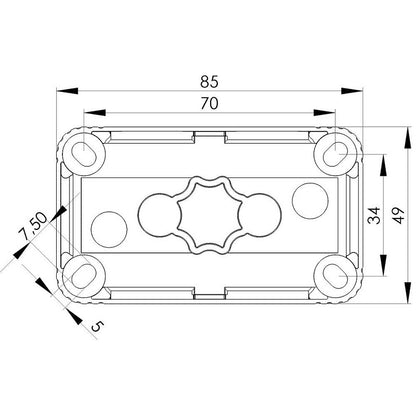

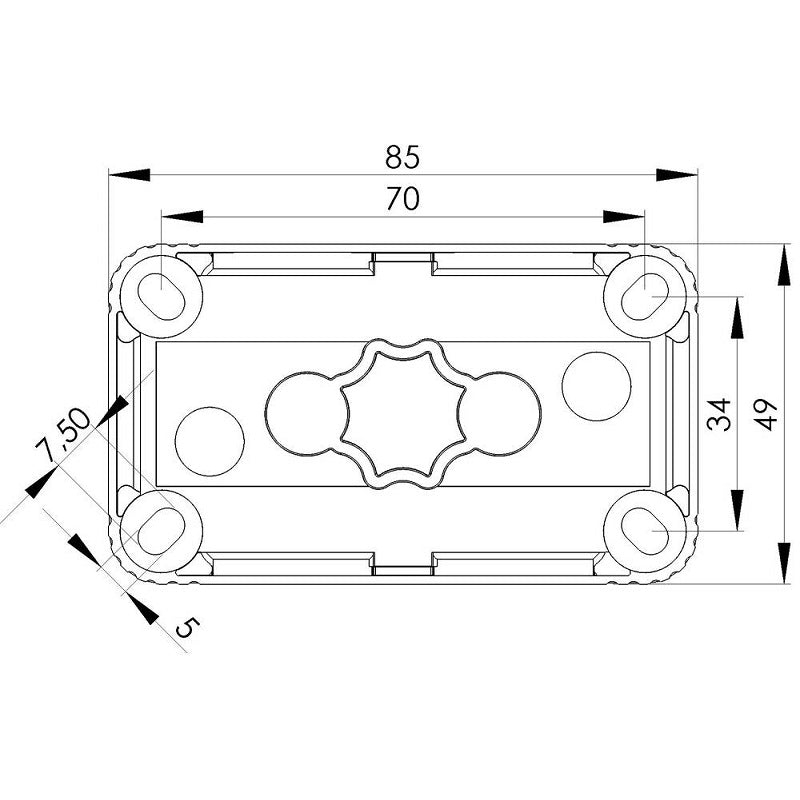

| External dimensions LxWxH | 85 x 49 x 51mm |
| Using for cable gland |  |
| Product Color | RAL 9005 |
| Order no. RAL 9005 | 10109900 |
| Type | COMBI 206 BK / 3xWAGO 221-413 |
