Wiska combi 304 wh polypropylene ø 82 x 57mm enclosure white ip66 3x3 pole wago connectors

£5.33
£5.33
Sale Sold out

Price excludes VAT, which will be calculated at checkout.

In stock (100 units), ready to be shipped
Have a Question
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Description

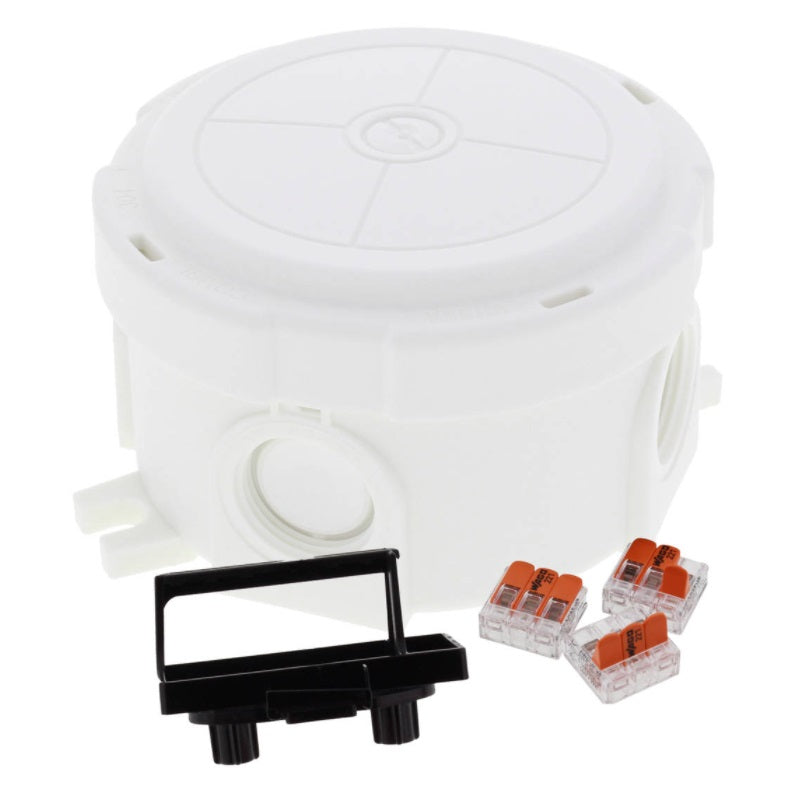

Wiska Combi 304 WH Polypropylene Ø 82 x 57mm Enclosure White IP66 3x3 Pole Wago Connectors - 10110637

Part No            Description

10110637          Combi 304 WH Polypropylene Ø 82 x 57mm Enclosure White IP66 3x3 Pole Wago Connectors

IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland

Equipment:
4 M20 threaded membrane entries
including terminal carrier on quick mounting plate mounted + 3x WAGO 221-413 enclosed loose

Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66 / IP67
Glow wire test 750 °C
Voltage 400 V
Rated cross section 2,5 mm²
Fixing 2 external mounting feet
Ø cable diameter min 3 mm
Ø cable diameter max 12 mm

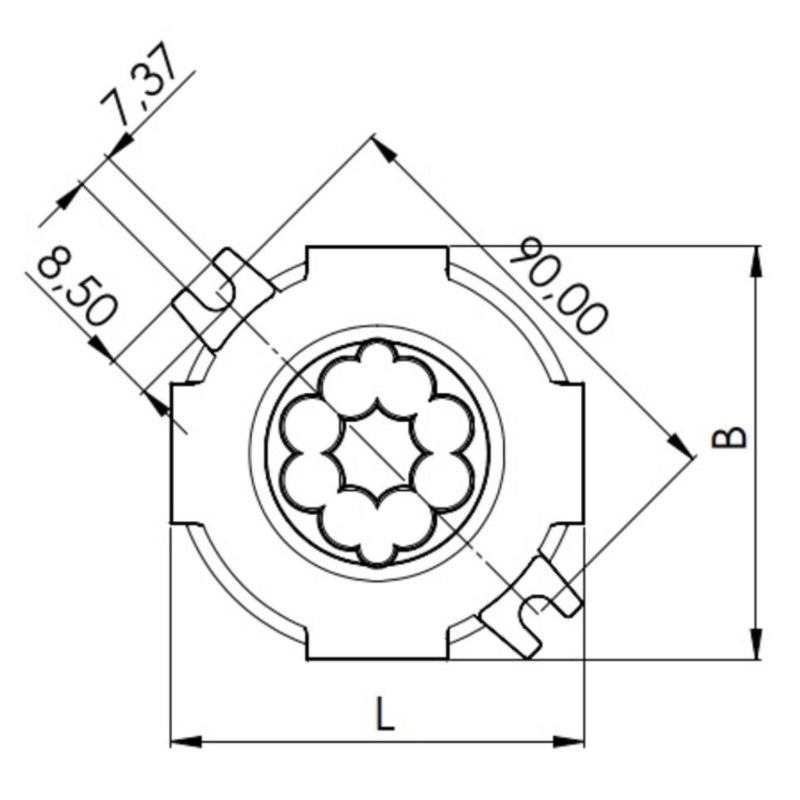

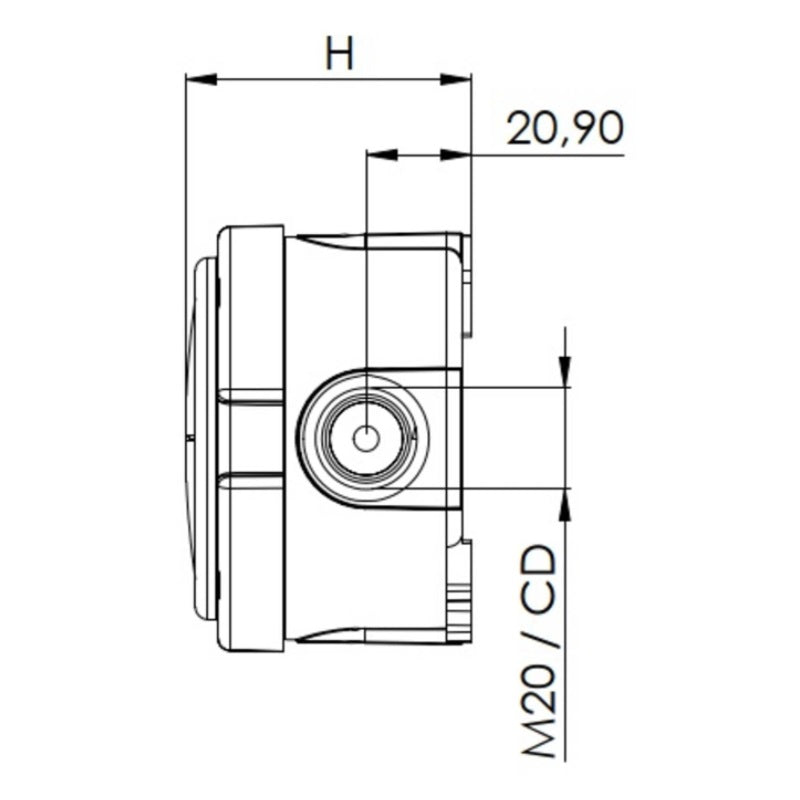

External dimensions LxWxH Ø 82 x 57mm
Type of cable gland M 20 x 1,5
Product Color RAL 9001
WISKA-Order no. 10110637
Type COMBI 304 / 3-221-413 WH
