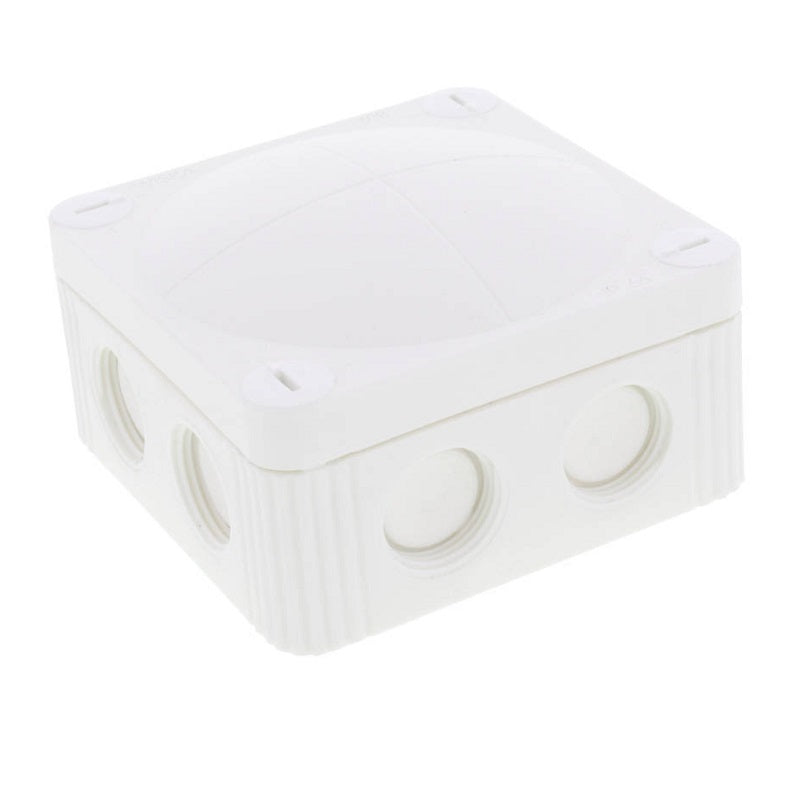

Wiska combi 308/5 wh polypropylene 85 x 85 x 51mm enclosure white (with 5 pole terminal)
£4.72
£4.72
Sale
Sold out
Price excludes VAT, which will be calculated at checkout.
In stock (100 units), ready to be shipped
Have a Question
Couldn't load pickup availability
Description
Wiska COMBI 308/5 WH Polypropylene 85 x 85 x 51mm Enclosure White (with 5 Pole Terminal) - 10060611
Part No Description
10060611 COMBI 308/5 WH Polypropylene 85 x 85 x 51mm Enclosure White (with 5 Pole Terminal)
IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
Equipment:
8 M20 threaded membrane entries
4 captive cover screws

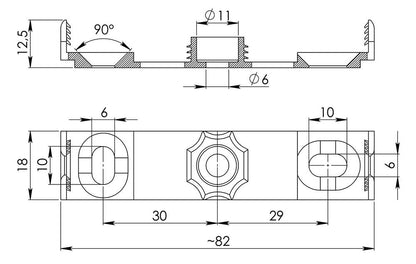

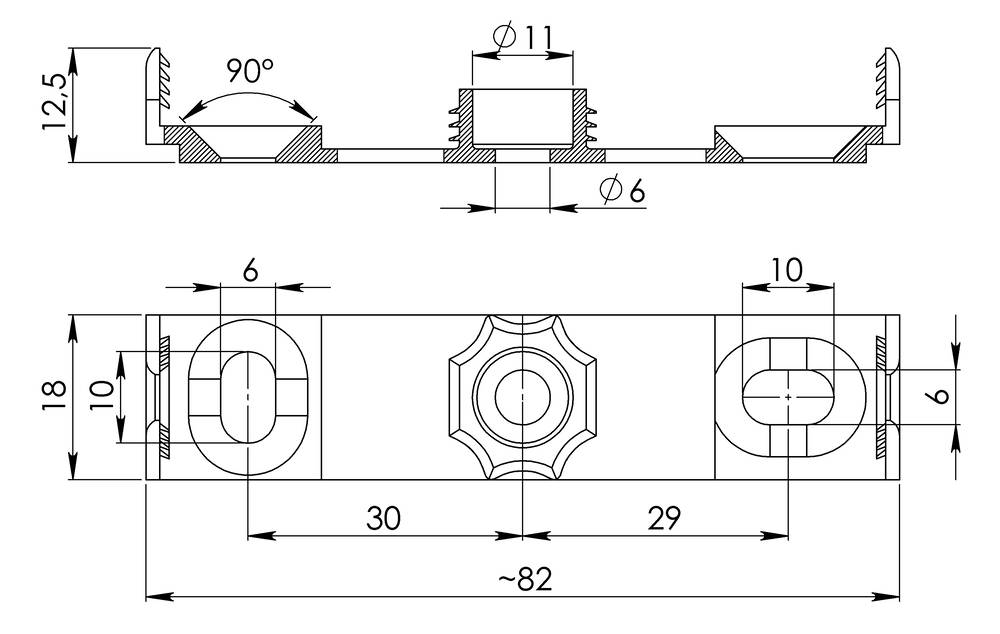

including mounting clip
including terminal block 5-poles, 4mm²

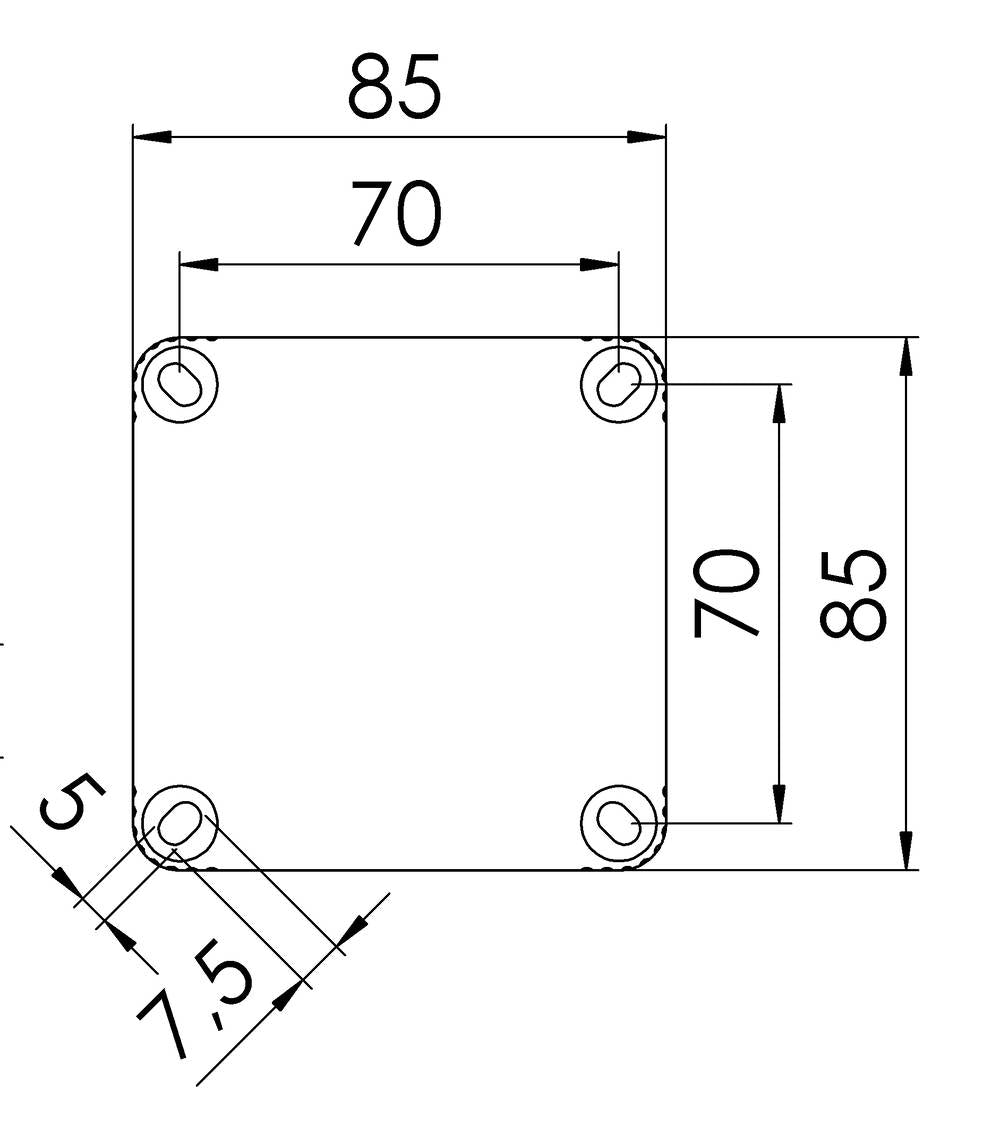

Fixing: With mounting clip or 4 internal openings outside of the sealing area
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Protection class | IP66 / IP67 |
| Glow wire test | 750 °C |
| Voltage | 400 V |
| Rated current / A (Terminal) | 32 A |
| Rated cross section | 4 mm² |
| Terminals/poles | 5-pole, 4,0 mm² |
| Fixing | 4 internal openings |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 12 mm |
| External dimensions LxWxH | 85 x 85 x 51mm |
| Type of cable gland | M 20 x 1,5 |
| Using for cable gland |  |
| Product Color | RAL 9001 |
| WISKA-Order no. | 10060611 |
| Type | COMBI 308/5 WH |
