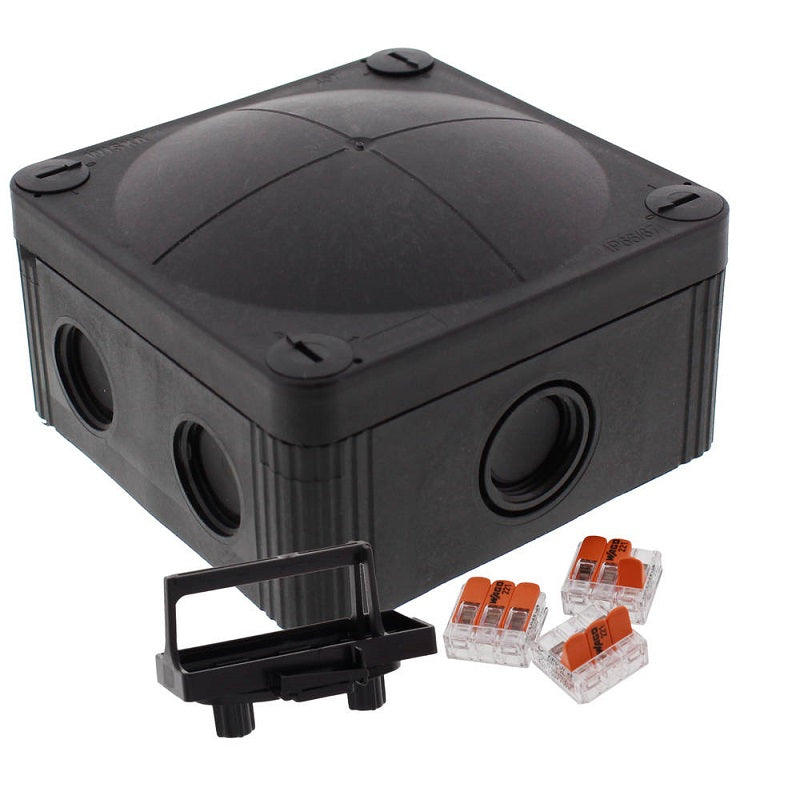

Wiska combi 407 bk polypropylene 95 x 95 x 60mm enclosure black ip66 3x3 pole wago connectors

Description

Wiska Combi 407 BK Polypropylene 95 x 95 x 60mm Enclosure Black IP66 3x3 Pole Wago Connectors - 10109673

Part No            Description

10109673          Combi 407 BK Polypropylene 95 x 95 x 60mm Enclosure Black IP66 3x3 Pole Wago Connectors

IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland

Equipment:
6 x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with knockout to M25
2 membrane cable entries through rear
4 captive cover screws
including mounting clip

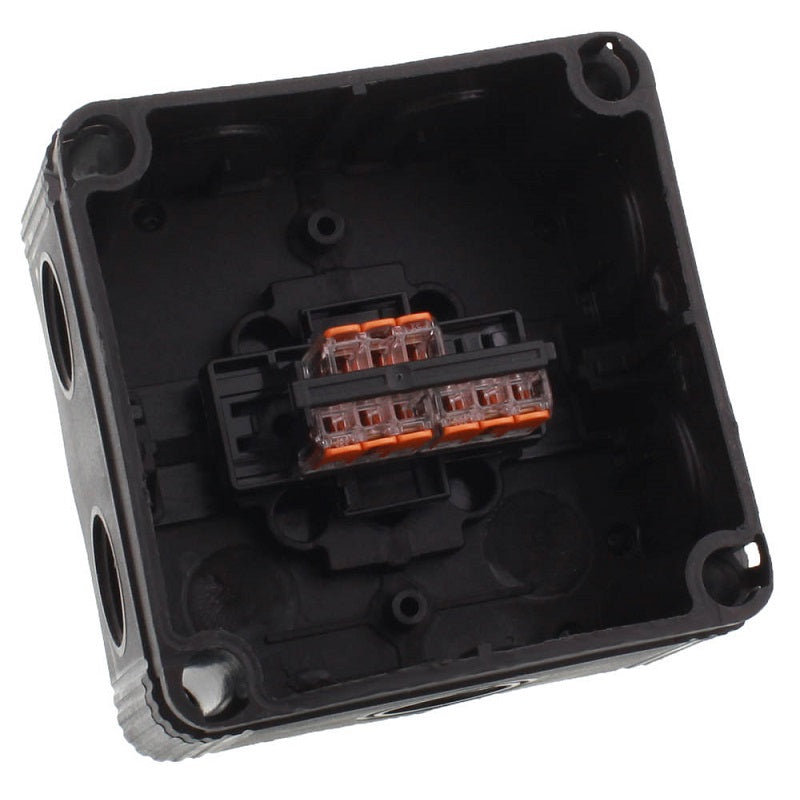

including terminal carrier on quick mounting plate mounted with 3x WAGO 221-413

Fixing: With mounting clip or 4 internal openings outside of the sealing area

Material	Polypropylene
Material sealing gasket	TPE
Temp. range min	-30 °C
Temp. range max	100 °C
Temperatures during install.	-5 °C - 60 °C
Protection class	IP66 / IP67
Glow wire test	750 °C
Voltage	450 V
Rated current / A (Terminal)	32 A
Rated cross section	4 mm²
Terminals/poles	4 mm²
Fixing	4 internal openings
Ø cable diameter min	3 mm
Ø cable diameter max	12 mm
External dimensions LxWxH	95 x 95 x 60mm
Type of cable gland	M 20 x 1,5, M 25 x 1,5
Using for cable gland
Product Color	RAL 9005
Order no. RAL 9005	10109673
Type	COMBI 407 BK / 3-221-413
