Wiska combi 607 wh polypropylene 110 x 110 x 66mm enclosure white ip66 3x3 pole wago connectors
£9.39
£9.39
Sale
Sold out
Price excludes VAT, which will be calculated at checkout.
In stock (100 units), ready to be shipped
Have a Question
Couldn't load pickup availability
Description

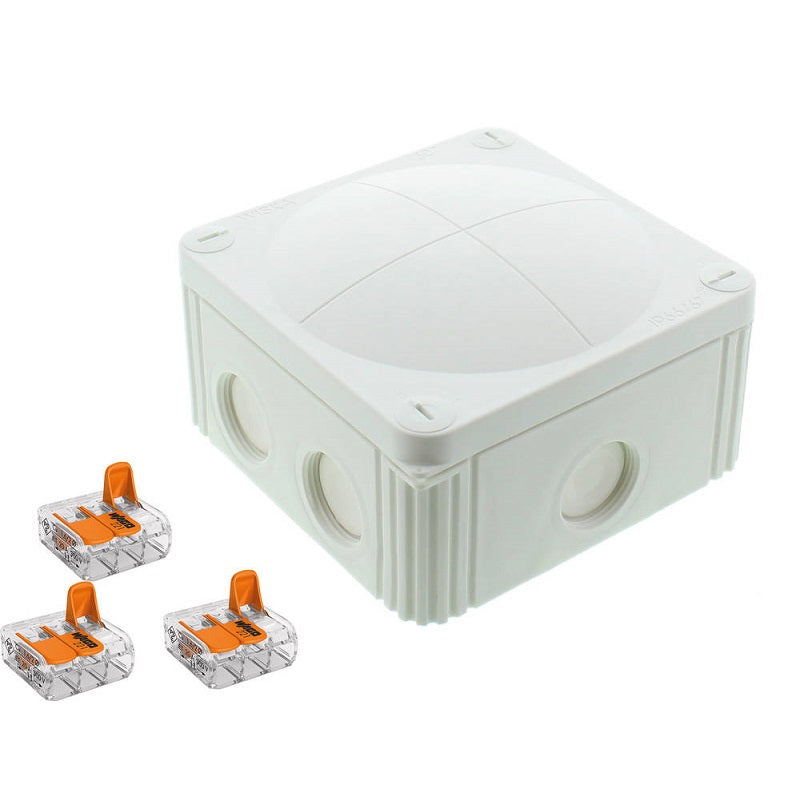

Wiska Combi 607 WH Polypropylene 110 x 110 x 66mm Enclosure White IP66 3x3 Pole Wago Connectors - 10110873
Part No Description
10110873 Combi 607 WH Polypropylene 110 x 110 x 66mm Enclosure White IP66 3x3 Pole Wago Connectors
IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
Equipment:
- 7 M25 threaded membrane entries
- 3 membrane cable entries through rear
- 4 captive cover screws
- inclusive terminal carrier + 3x WAGO 221-613 enclosed loose
Mounting: 4 internal openings outside of the sealing area
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Protection class | IP66 / IP67 |
| Glow wire test | 750 °C |
| Voltage | 690 V |
| Rated cross section | 6 mm² |
| Terminals/poles | 6 mm² |
| Fixing | 4 internal openings |
| Ø cable diameter min | 5,2 mm |
| Ø cable diameter max | 17 mm |
| External dimensions LxWxH | 110 x 110 x 66mm |
| Using for cable gland |  |
| Product Color | RAL 9001 |
| WISKA-Order no. | 10110873 |
| Type | COMBI 607 WH / 3-221-613 |
