Wiska sprint® glp25 plus cable gland with locknut ip68 white (pack of 10)

£11.47
£11.47
Sale Sold out

Price excludes VAT, which will be calculated at checkout.

In stock (100 units), ready to be shipped
Have a Question
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Description

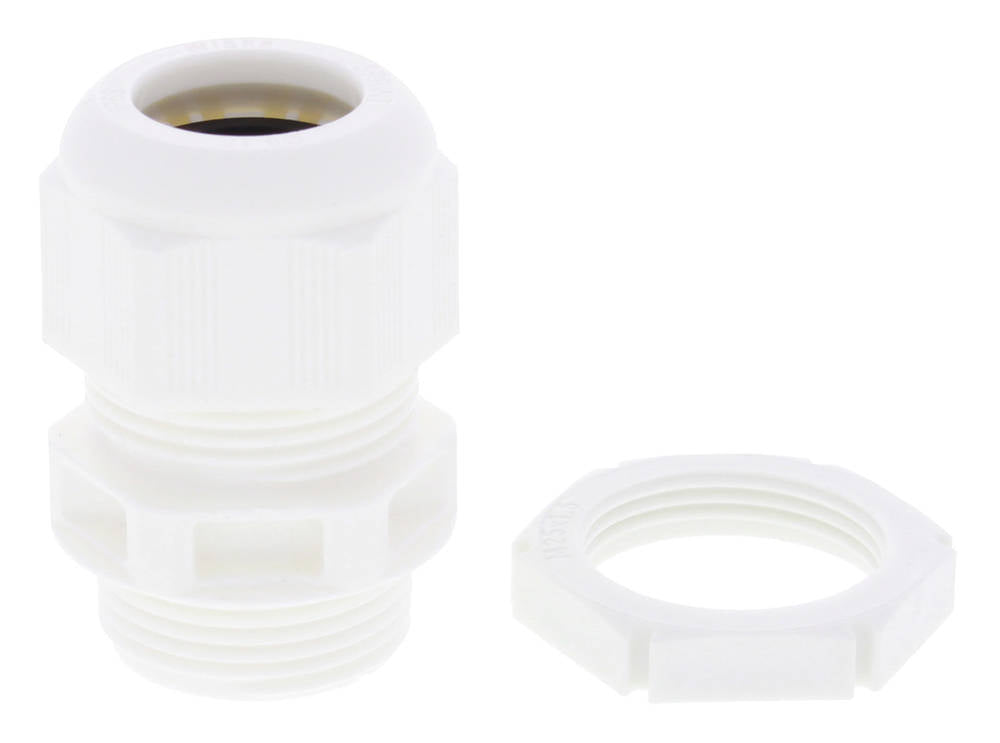

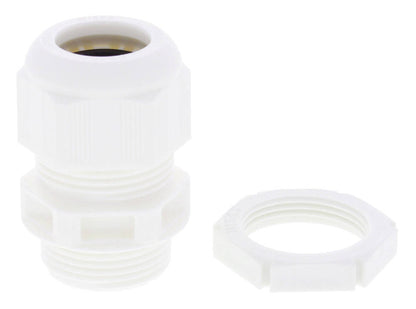

Wiska Sprint® GLP25 Plus Cable Gland with locknut IP68 White (Pack of 10) – 99706

Part No       Description

99706          Sprint® GLP20 Plus Cable Gland with locknut IP68 White (Pack of 10)

Material cable gland Polyamide
Material sealing gasket EPDM
Protection class IP68 (5 bar 30 min), IP69
Temp. range min -40 °C
Temp. range max 100 °C
Glow wire test 750 °C
Thread type M

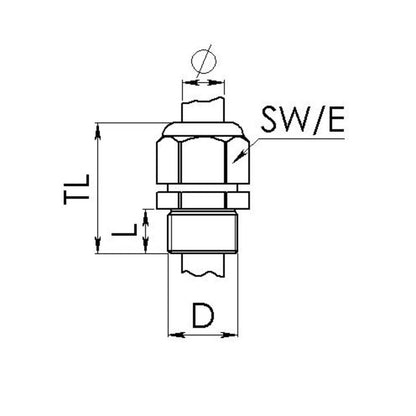

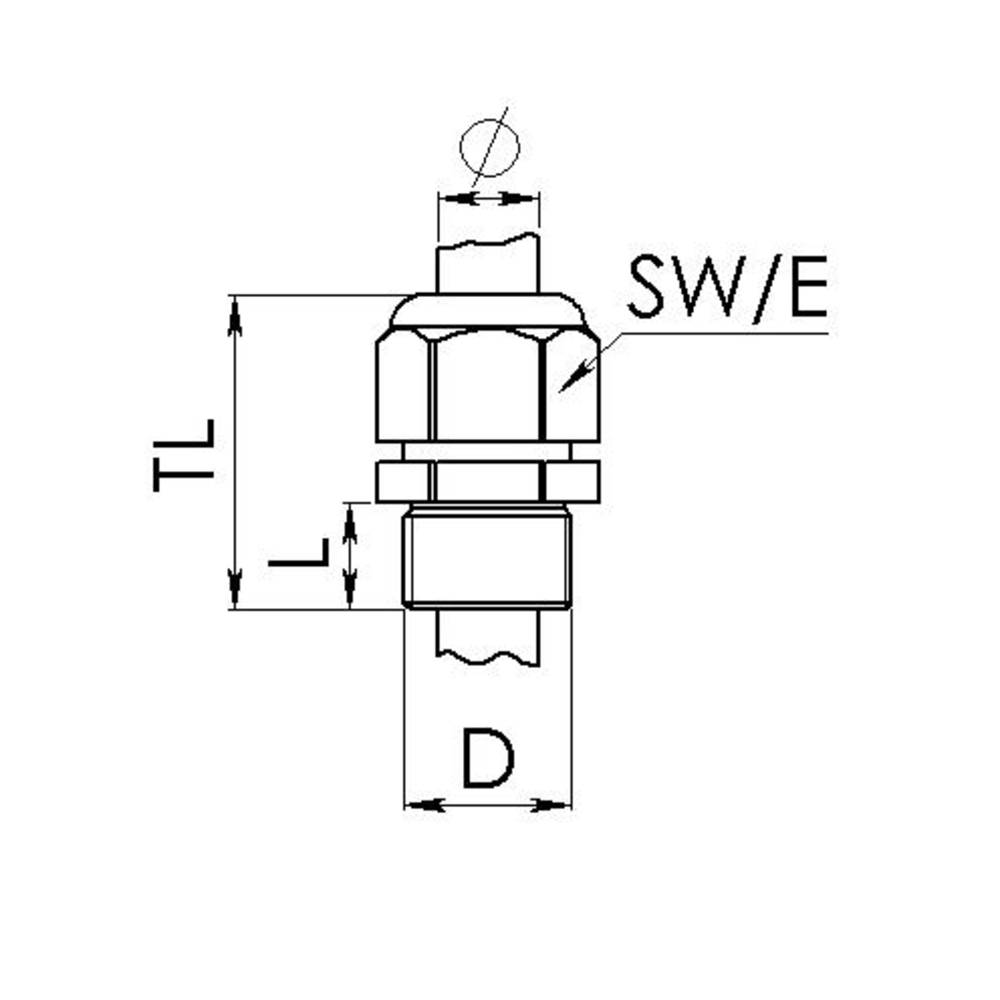

Ø Connection thread D 25
Lead 1,5
Length screw-in thread L 10 mm
Ø cable diameter min 9 mm
Ø cable diameter max 17 mm
Key width SW 29 mm
Collar diameter (E) 32 mm
Total length TL 38 mm - 47 mm
Type of cable anchorage A
Install. torques fitting 10 N/m
Install. torques fitting/EADR 4 N/m
Install. torques cap nut 4 N/m
Impact category 4
Equipment incl. locknut
Product Color RAL 9010
Type GLP25 white
UK-Number 99706
WISKA-Order no. 10106656
