Wiska sprint® glp40 cable gland with locknut ip68 grey (pack of 1)

£5.64
£5.64
Sale Sold out

Price excludes VAT, which will be calculated at checkout.

In stock (100 units), ready to be shipped
Have a Question
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Description

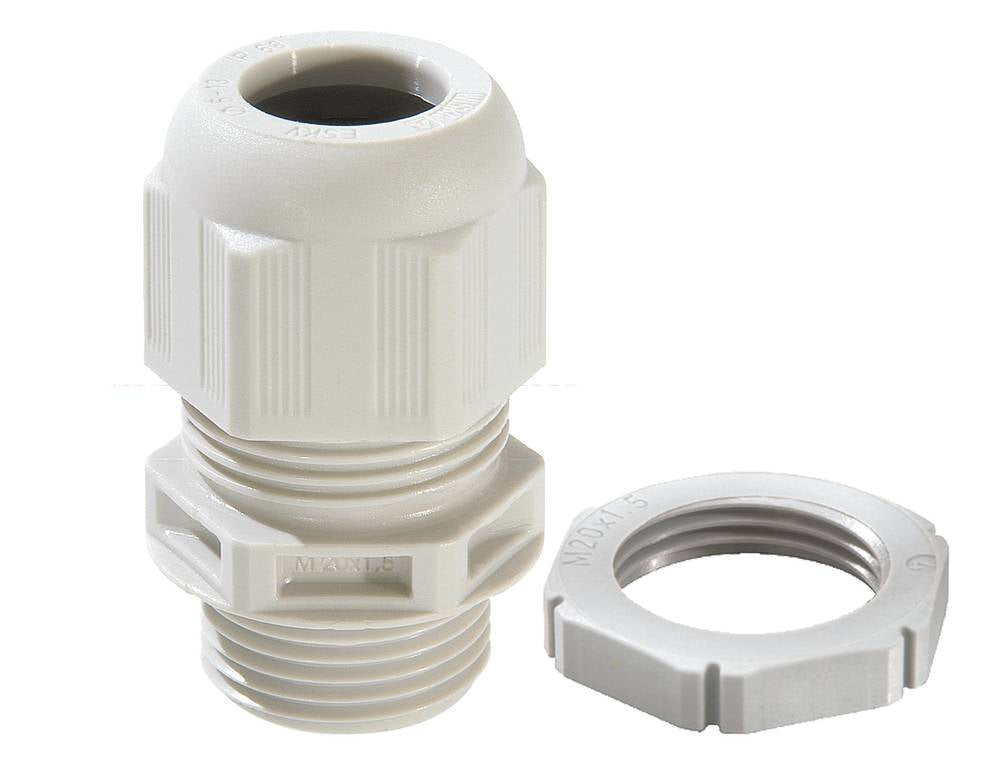

Wiska Sprint® GLP40 Cable Gland with locknut IP68 Grey (Pack of 1) – 10112384

Part No          Description

10112384        Sprint® GLP40 Cable Gland with locknut IP68 Grey (Pack of 1)

Material cable gland Polyamide
Material sealing gasket EPDM
Protection class IP69, IP68 (5 bar 30 min)
Temp. range min -40 °C
Temp. range max 100 °C
Glow wire test 750 °C
Thread type M

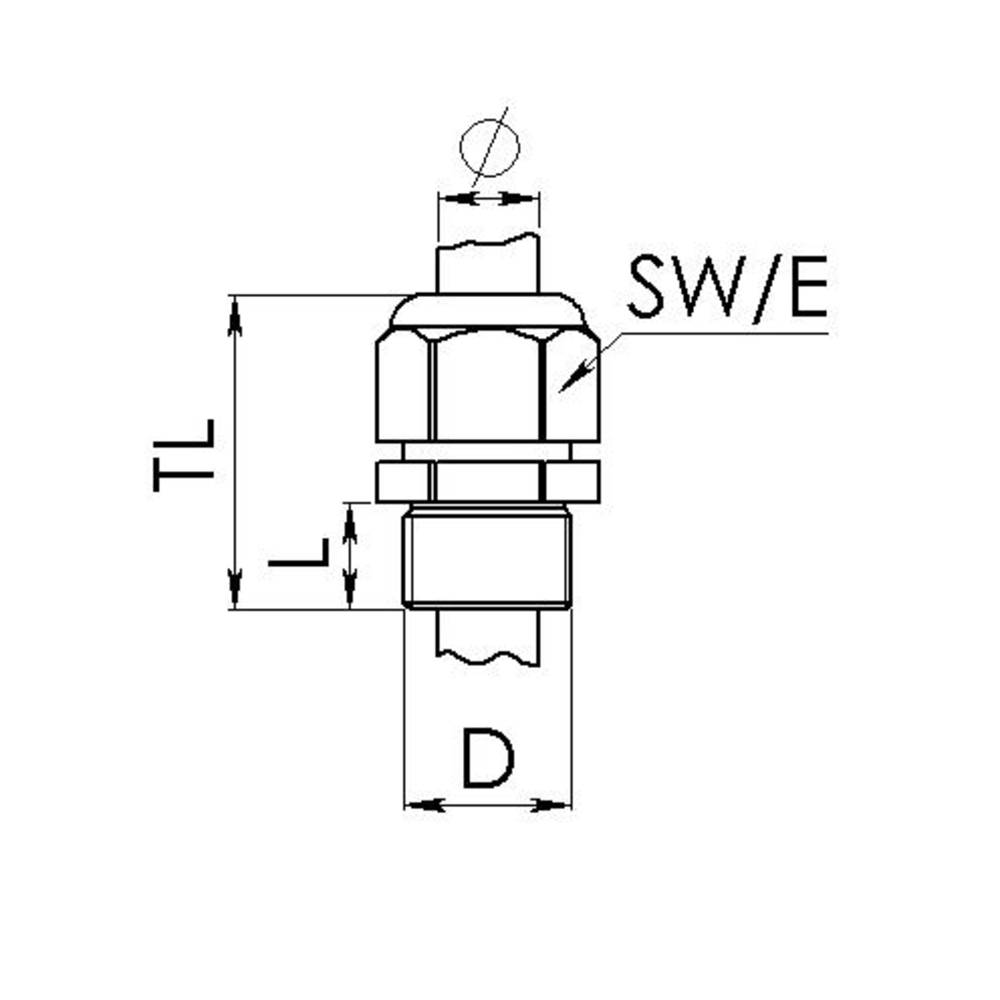

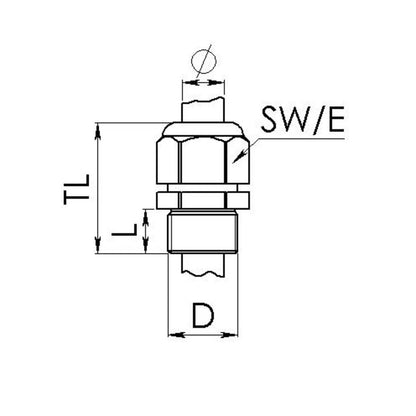

Ø Connection thread D 40
Lead 1,5
Length screw-in thread L 12 mm
Ø cable diameter min 16 mm
Ø cable diameter max 28 mm
Key width SW 46 mm
Collar diameter (E) 51 mm
Total length TL 52 mm - 65 mm
Type of cable anchorage A
Install. torques fitting 20 N/m
Install. torques cap nut 20 N/m
Impact category 4
Equipment incl. locknut, Incl. connection thread gasket
Product Color RAL 7035
Type GLP40 grey
UK-Number 99710
WISKA-Order no. 10112384
