Wiska sprint® glp63 cable gland with locknut ip68 grey (pack of 5)

£47.12
£47.12
Sale Sold out

Price excludes VAT, which will be calculated at checkout.

In stock (100 units), ready to be shipped
Have a Question
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Description

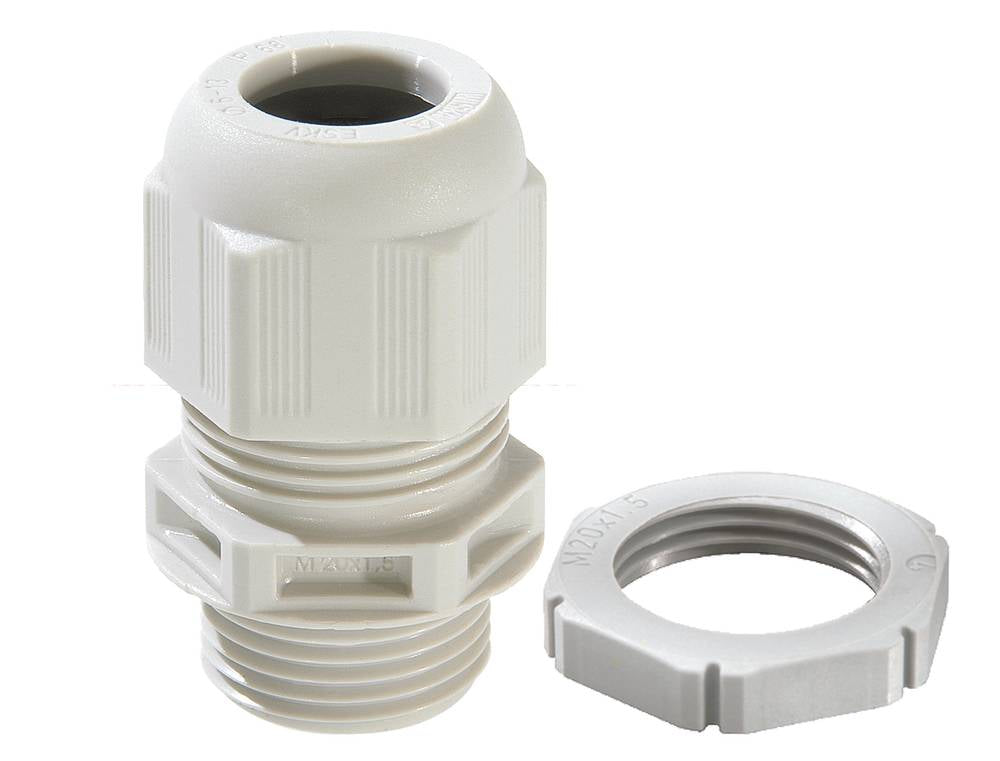

Wiska Sprint® GLP63 Cable Gland with locknut IP68 Grey (Pack of 5) – 99714

Part No          Description

99714             Sprint® GLP63 Cable Gland with locknut IP68 Grey (Pack of 5)

Material cable gland Polyamide
Material sealing gasket EPDM
Protection class IP69, IP68 (5 bar 30 min)
Temp. range min -40 °C
Temp. range max 100 °C
Glow wire test 750 °C

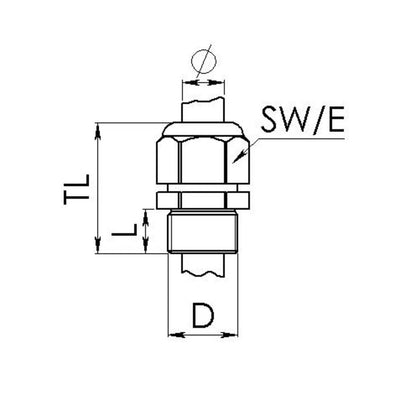

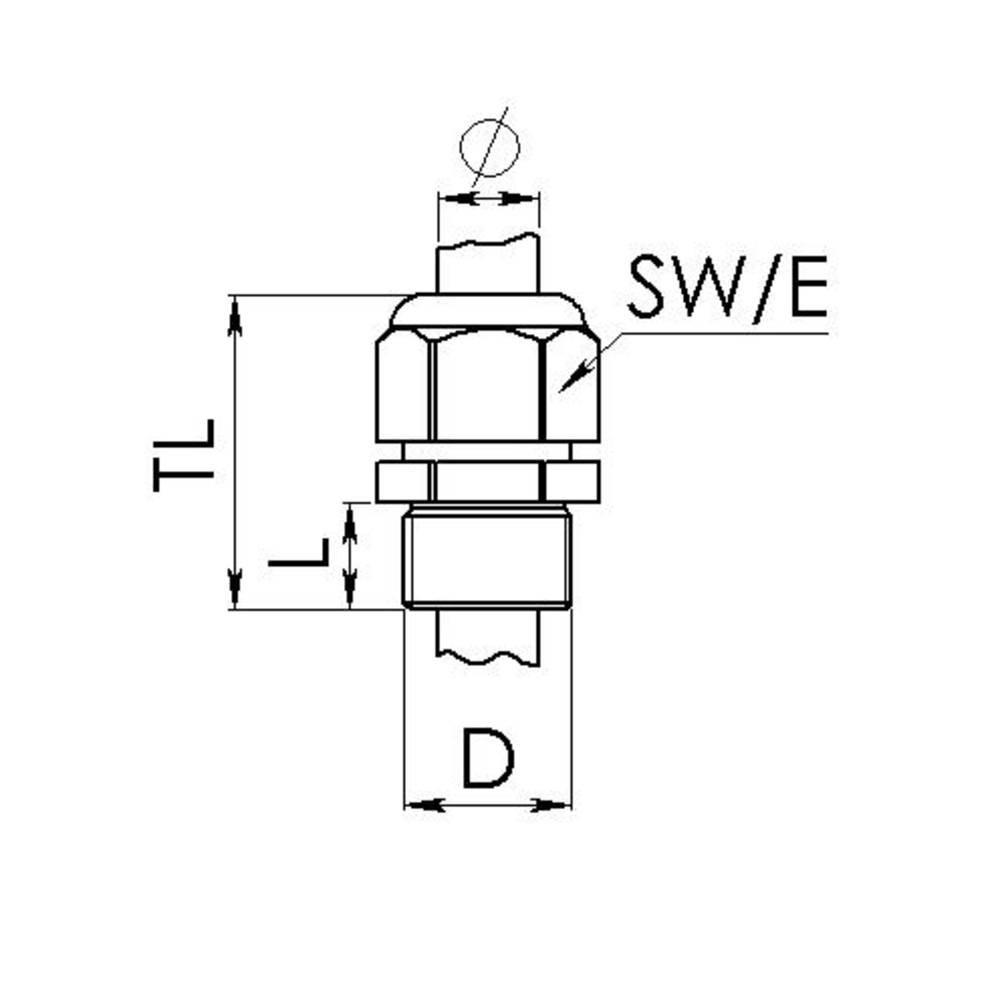

Thread type M
Ø Connection thread D 63
Lead 1,5
Length screw-in thread L 15 mm
Ø cable diameter min 34 mm
Ø cable diameter max 48 mm
Key width SW 68 mm
Collar diameter (E) 75 mm
Total length TL 64 mm - 78 mm
Type of cable anchorage A
Install. torques fitting 30 N/m
Install. torques cap nut 30 N/m
Impact category 5
Equipment incl. locknut, Incl. connection thread gasket
Product Color RAL 7035
Type GLP63 grey
UK-Number 99714
WISKA-Order no. 10109783
